RN143-2-02-10M footprint, schematic symbol and 3D model by Schaffner

Symbol

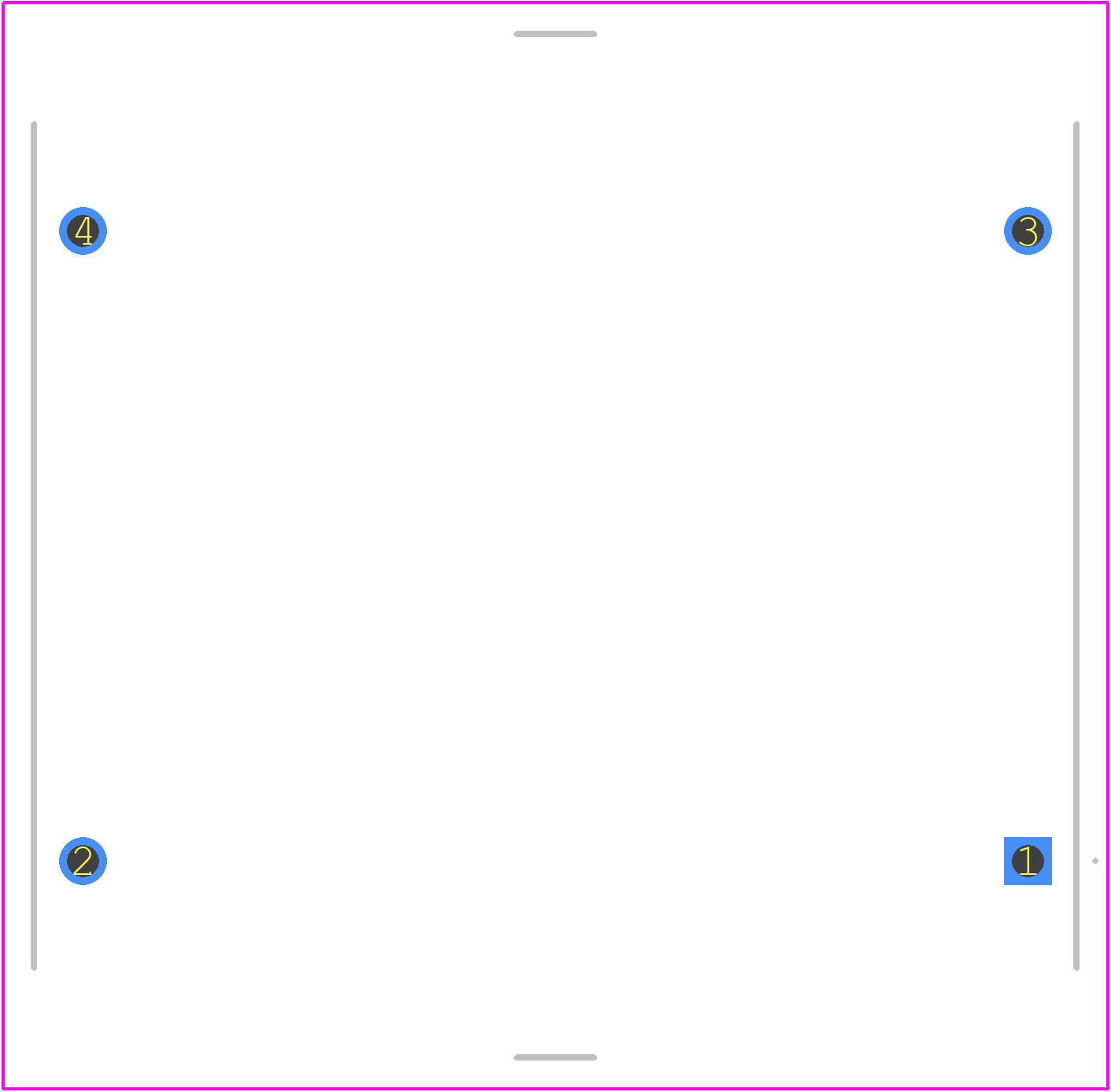

PCB Footprints

RN143-2-02-10M Details

Schaffner recommends a minimum spacing of 2mm between the component and other conductive elements on the PCB, and a symmetrical layout to minimize electromagnetic interference (EMI).
While the RN143-2-02-10M is rated for operation up to 85°C, Schaffner recommends derating the component for temperatures above 70°C to ensure reliable performance and longevity.
The RN143-2-02-10M is designed to attenuate high-frequency noise and harmonics, with a typical attenuation of 30dB at 100MHz and 40dB at 500MHz. However, the actual performance may vary depending on the specific application and PCB layout.
Yes, the RN143-2-02-10M is compatible with lead-free soldering processes, but Schaffner recommends following the recommended soldering profile and temperature to ensure reliable assembly.
The typical insertion loss of the RN143-2-02-10M is around 0.5dB at 100MHz, but this value may vary depending on the specific application and PCB layout.

Community Provided

System Verified

Community Approved

Use the download button to access the RN143-2-02-10M schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RN143, or try a keyword search, such as Mains Filters
