Schaffner recommends a symmetrical layout with the filter placed close to the power entry point, and the input and output lines should be routed separately to minimize electromagnetic interference (EMI).
The RN152-10-02 is designed to attenuate high-frequency noise and transients through its proprietary filter design, which includes a combination of inductors, capacitors, and resistors to provide effective EMI filtering.
Yes, the RN152-10-02 is designed and manufactured to meet the requirements of high-reliability applications, including industrial, medical, and aerospace industries, and is built with high-quality components to ensure long-term reliability.
The RN152-10-02 is rated for up to 10A of continuous current, making it suitable for use in applications with moderate to high power requirements, but it's essential to ensure that the filter is properly sized and derated for the specific application.
The RN152-10-02 is designed to minimize signal distortion and attenuation, ensuring that the filtered signals remain intact and unaffected, while still providing effective EMI filtering.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RN152-10-02 Overview

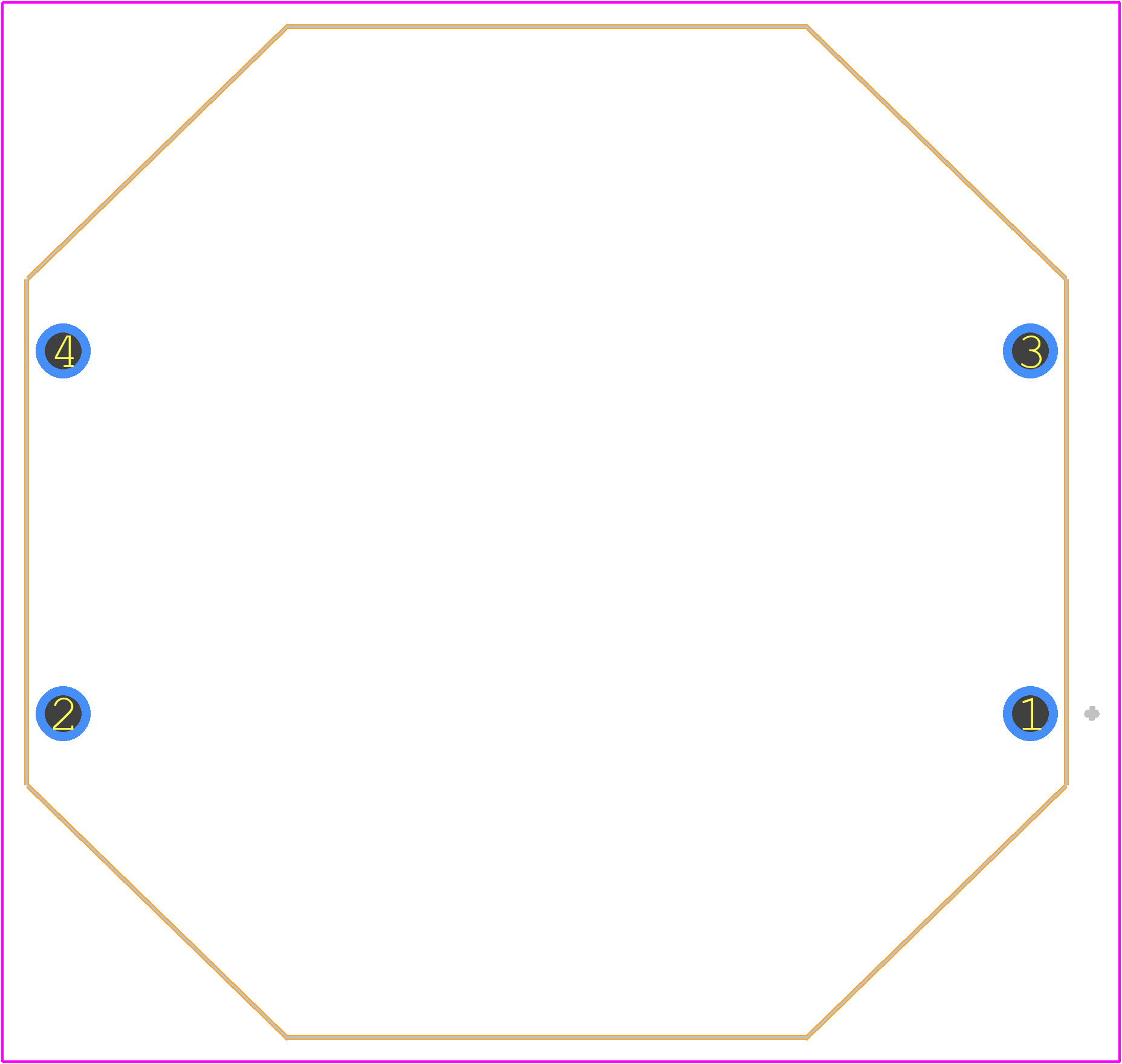

Use the download button to access the RN152-10-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN152,
or try a keyword search, such as Mains Filters
