RN152-4-02-6M8 - Schaffner

RN152-4-02-6M8 Frequently Asked Questions (FAQs)

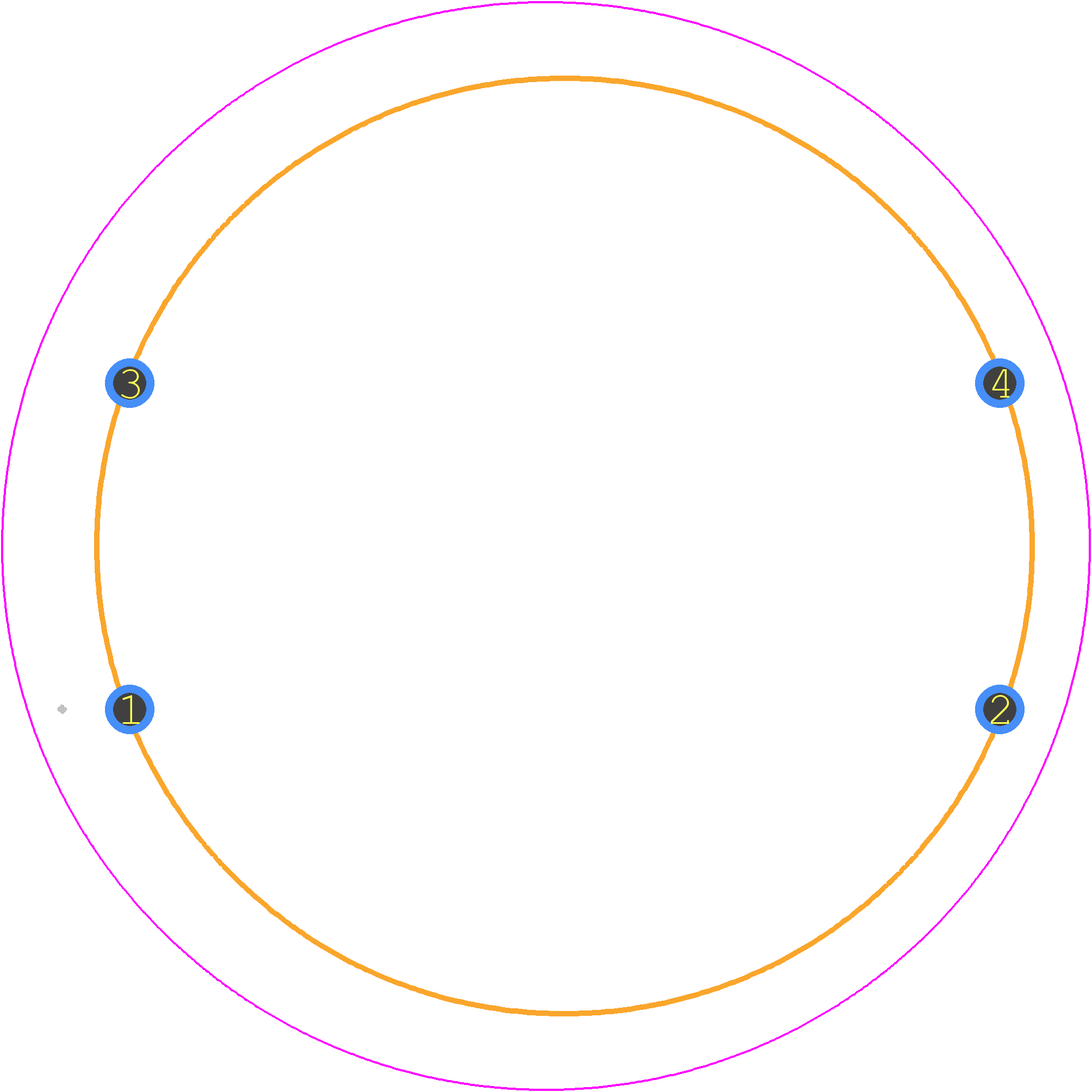

• What is the recommended PCB layout and spacing for optimal performance of the RN152-4-02-6M8?
  Schaffner recommends a minimum spacing of 2mm between the component and any other components or conductive paths on the PCB to ensure optimal performance and minimize electromagnetic interference (EMI). A symmetrical layout with a solid ground plane is also recommended.
• Can the RN152-4-02-6M8 be used in high-temperature applications?
  While the RN152-4-02-6M8 is rated for operation up to 85°C, it's not recommended for use in high-temperature applications above 105°C. For such applications, Schaffner offers other products with higher temperature ratings, such as the RN152-4-02-6M8-HT.
• How do I ensure the RN152-4-02-6M8 is properly soldered and mounted on the PCB?
  Schaffner recommends following the recommended soldering profile and using a solder with a melting point above 217°C. The component should be mounted on a PCB with a thickness of 1.6mm or less, and the soldering iron should be set to a temperature of 250°C to 270°C.
• What is the typical lead time and MOQ for the RN152-4-02-6M8?
  The typical lead time for the RN152-4-02-6M8 is 6-8 weeks, and the minimum order quantity (MOQ) is 500 pieces. However, these values may vary depending on the region, distributor, and availability. It's recommended to check with Schaffner or an authorized distributor for the most up-to-date information.
• Is the RN152-4-02-6M8 compatible with lead-free soldering processes?
  Yes, the RN152-4-02-6M8 is compatible with lead-free soldering processes. Schaffner ensures that all its products comply with the RoHS (Restriction of Hazardous Substances) directive and are lead-free.
