RN152-8-02-2M7 footprint, schematic symbol and 3D model by Schaffner

Symbol

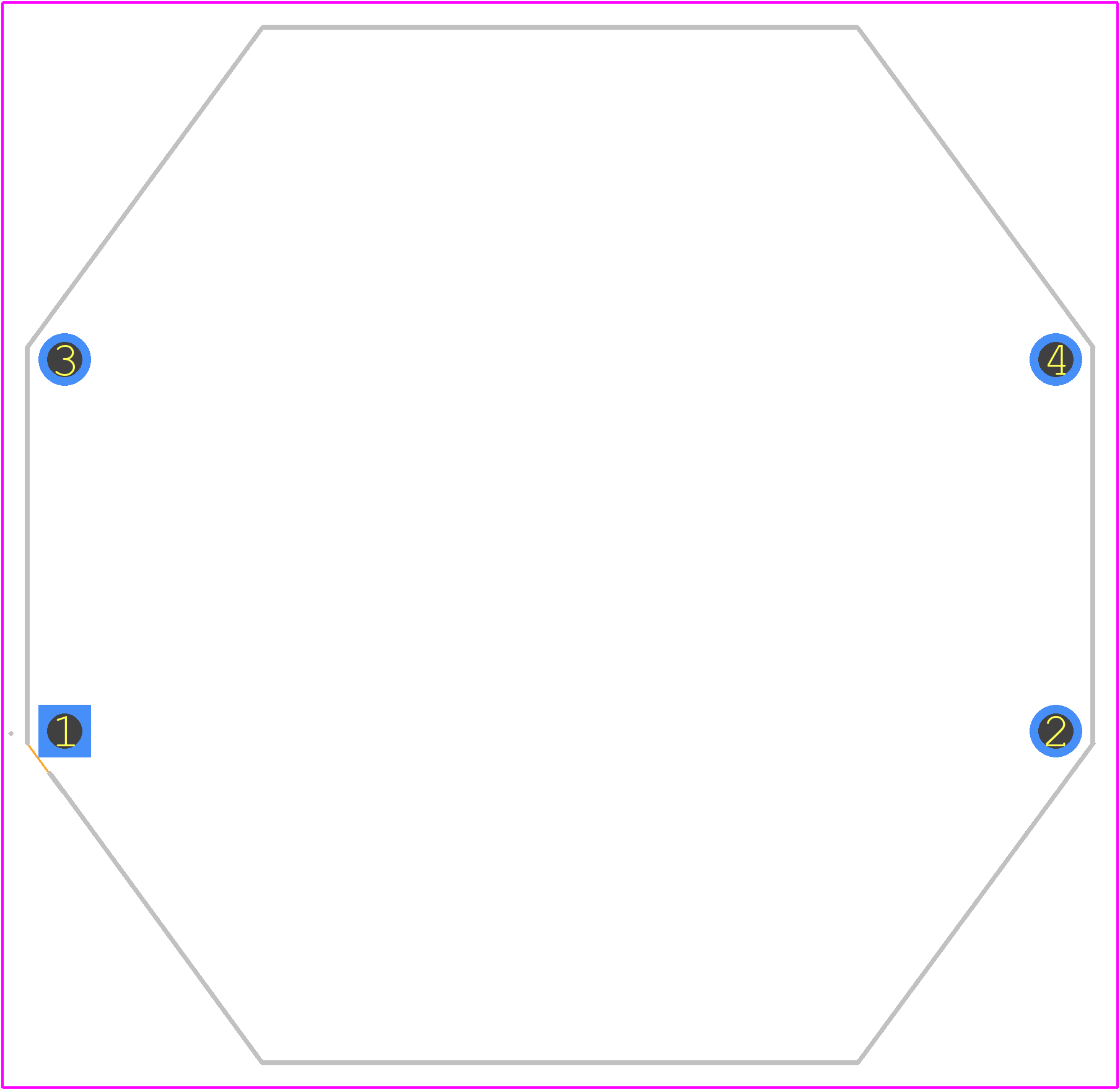

PCB Footprints

3D Models

RN152-8-02-2M7 Details

Schaffner recommends a symmetrical PCB layout with a solid ground plane and a minimum of 1mm clearance around the component to ensure optimal performance and minimize electromagnetic interference (EMI).
While the RN152-8-02-2M7 is rated for operation up to 85°C, Schaffner recommends derating the component for high-temperature applications above 70°C to ensure reliability and prevent thermal runaway.
Schaffner recommends connecting the shield pin to the chassis ground or a solid ground plane to ensure effective shielding and minimize EMI. Additionally, ensure that the PCB layout provides a clear path for the return current to flow back to the source.
Schaffner recommends a soldering profile with a peak temperature of 260°C and a dwell time of 10-15 seconds to prevent thermal damage to the component.
While the RN152-8-02-2M7 is designed to be rugged, Schaffner recommends additional mechanical support or potting to ensure the component remains securely in place in high-vibration or shock-prone environments.

Community Provided

System Verified

Community Approved

Use the download button to access the RN152-8-02-2M7 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RN152, or try a keyword search, such as Mains Filters
