RN1701JE(TE85L,F) - Toshiba

Description: Bipolar Transistors - Pre-Biased ESV PLN (LF) TRANSISTOR Pd=200mW F=1MHz

Download RN1701JE(TE85L,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

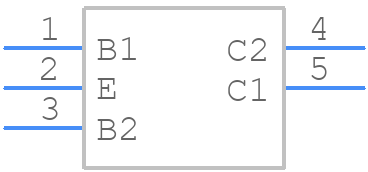

RN1701JE(TE85L,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
RN1701JE(TE85L,F) - Toshiba PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - N581-499
click to zoom
3D Models
RN1701JE(TE85L,F) - Toshiba - 3D model - SO Transistor Flat Lead - N581-499
click to zoom

RN1701JE(TE85L,F) Details

  • Manufacturer Part Number:

    RN1701JE(TE85L,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    BUILT IN BIAS RESISTANCE RATIO IS 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Base Capacitance-Max:

    6 pF

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    30

  • JESD-30 Code:

    R-PDSO-F5

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    NPN

  • Power Dissipation Ambient-Max:

    0.1 W

  • Power Dissipation-Max (Abs):

    0.1 W

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

  • VCEsat-Max:

    0.3 V

RN1701JE(TE85L,F) Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Use a heat sink, ensure good airflow, and consider derating the device's power dissipation according to the temperature derating curve in the datasheet.
  • Although not explicitly stated, it's recommended to limit the input voltage to 5.5V to ensure reliable operation and prevent damage to the device.
  • Yes, the RN1701JE is suitable for switching regulator applications, but ensure the device is properly bypassed and the output is filtered to minimize noise and ripple.
  • Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines to prevent damage from electrostatic discharge.
