RN1707JE(TE85L,F) - Toshiba

Description: NPN X 2 BRT, Q1BSR=10K?, Q1BER=4

Download RN1707JE(TE85L,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

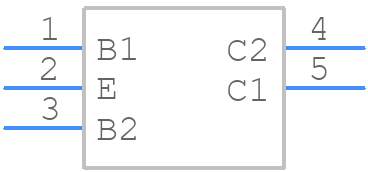

Symbol
RN1707JE(TE85L,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
RN1707JE(TE85L,F) - Toshiba PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - 2-2P1D
click to zoom
3D Models
RN1707JE(TE85L,F) - Toshiba - 3D model - SO Transistor Flat Lead - 2-2P1D
click to zoom

RN1707JE(TE85L,F) Details

  • Manufacturer Part Number:

    RN1707JE(TE85L,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    BUILT IN BIAS RESISTANCE RATIO IS 4.7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Base Capacitance-Max:

    6 pF

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-F5

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    NPN

  • Power Dissipation Ambient-Max:

    0.1 W

  • Power Dissipation-Max (Abs):

    0.1 W

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

  • VCEsat-Max:

    0.3 V
