RN171-I/RM - Microchip

Description: WiFi Modules (802.11) WiFly GSX 802.11b/g Mod, Industrial Temp

Download RN171-I/RM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

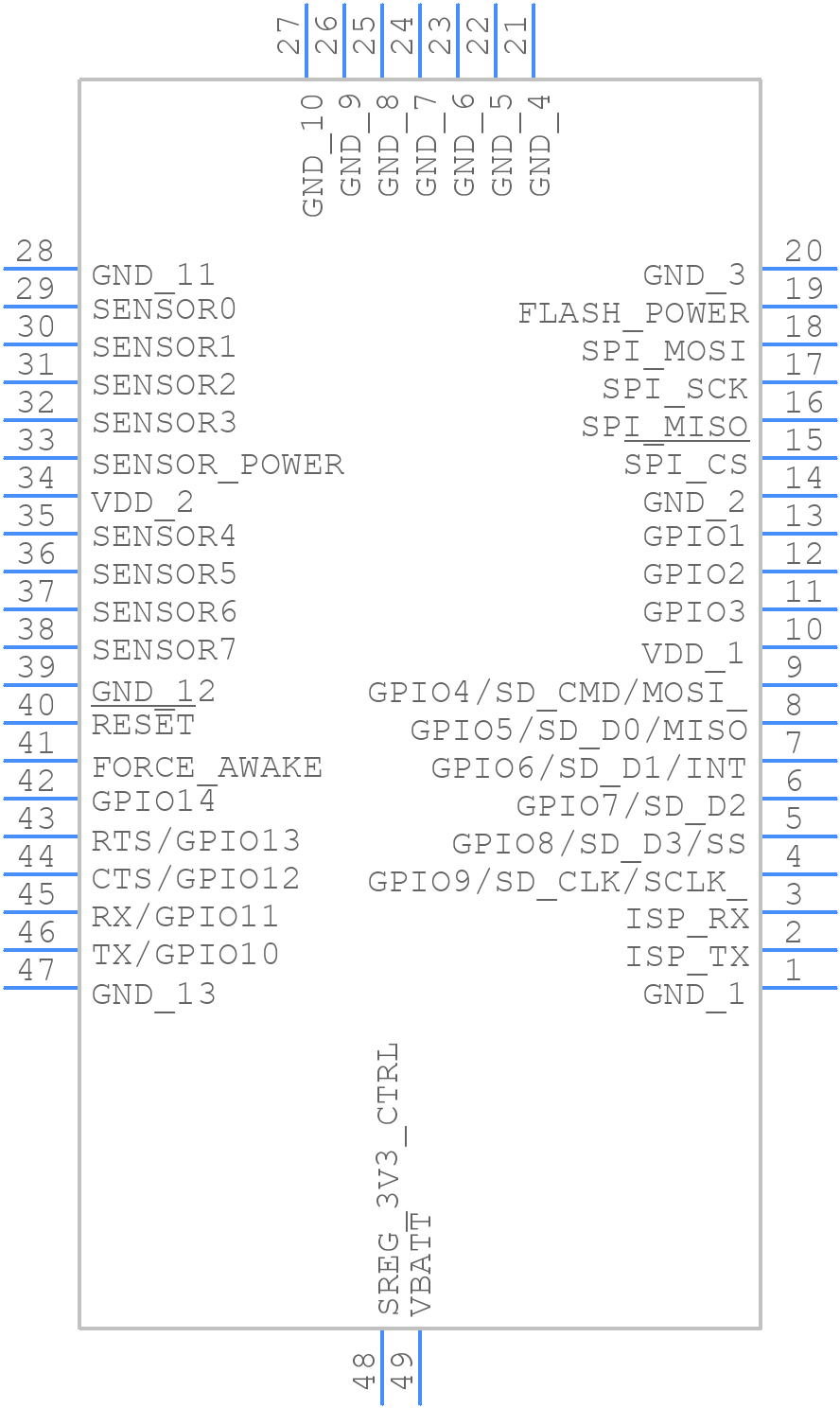

RN171-I/RM - Microchip - PCB symbol
click to zoom
PCB Footprints

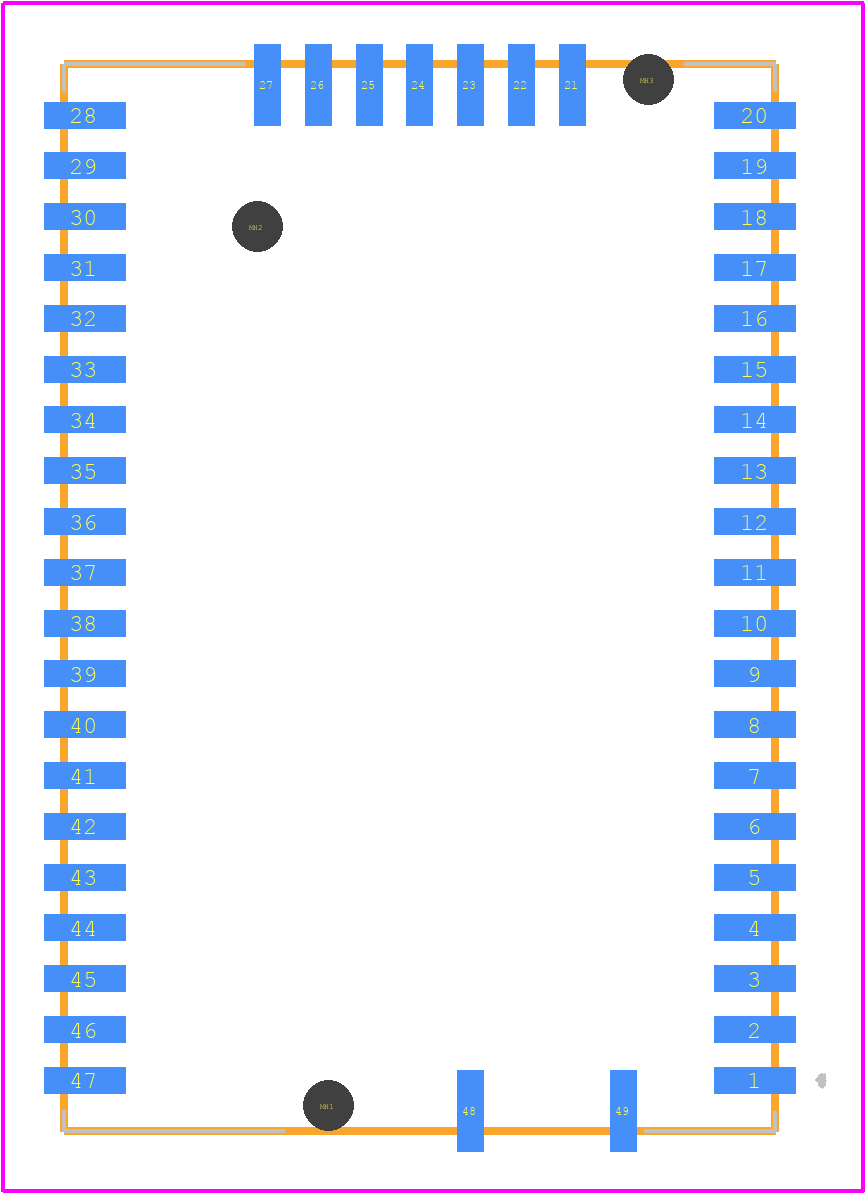

RN171-I/RM - Microchip PCB footprint - Other - Other - RN171-I/RM-3
click to zoom
3D Models
RN171-I/RM - Microchip - 3D model - Other - RN171-I/RM-3
click to zoom

RN171-I/RM Details

  • Manufacturer Part Number:

    RN171-I/RM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-49

  • Pin Count:

    49

  • Manufacturer Package Code:

    MODULE-49

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8529.90.22.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • JESD-30 Code:

    R-XQMA-N49

  • JESD-609 Code:

    e3

  • Length:

    26.67 mm

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    3.2004 mm

  • Supply Voltage-Max:

    3.7 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    17.78 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

RN171-I/RM Frequently Asked Questions (FAQs)

  • The RN171-I/RM can handle up to 4 concurrent TCP connections and 8 concurrent UDP connections.
  • To configure the RN171-I/RM for ad-hoc mode, use the 'AT+CWMODE=2' command to set the Wi-Fi mode to ad-hoc, then use the 'AT+CWAUTOCONN=0' command to disable auto-connection, and finally use the 'AT+CWSAP' command to set the ad-hoc network parameters.
  • Yes, the RN171-I/RM has a U.FL connector for connecting an external antenna. Make sure to use a 50-ohm antenna with a maximum gain of 2 dBi to ensure optimal performance.
  • To update the firmware on the RN171-I/RM, use the Microchip Wi-Fi firmware update tool, which can be downloaded from the Microchip website. Follow the instructions in the tool's user guide to update the firmware.
  • The power consumption of the RN171-I/RM in sleep mode is typically around 20-30 μA, depending on the specific sleep mode configuration.
