RN4678-V/RM122 footprint, schematic symbol and 3D model by Microchip

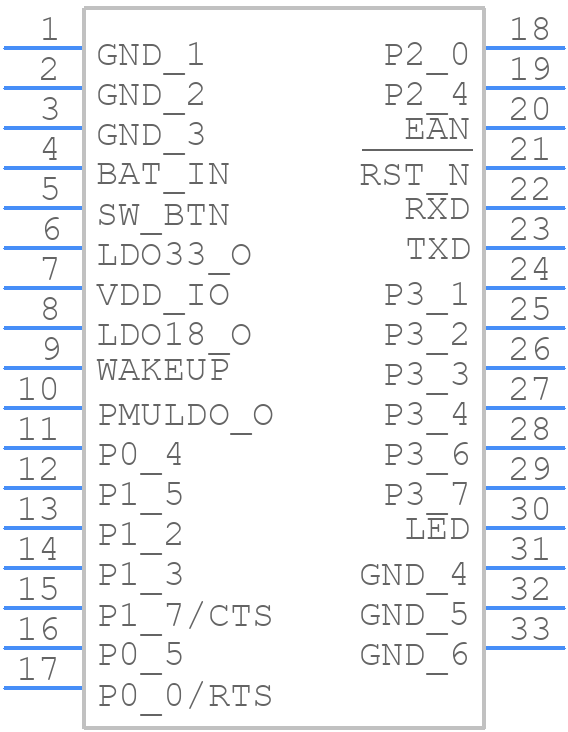

Symbol

click to zoom

PCB Footprints

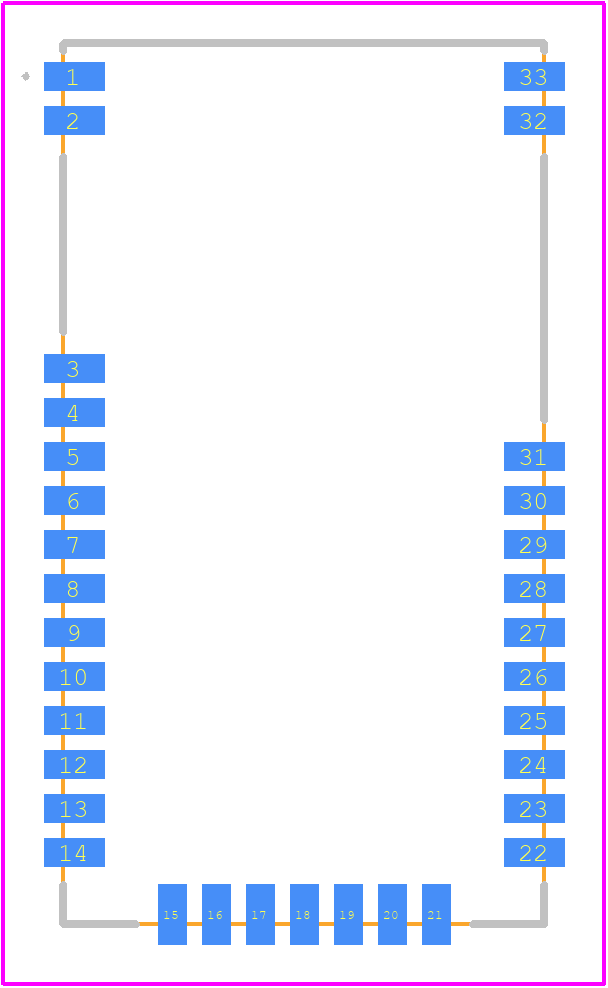

RN4678-V/RM122 - Microchip PCB footprint - Other - Other - RN4678-V/RM122-3

click to zoom

3D Models

RN4678-V/RM122 - Microchip - 3D model - Other - RN4678-V/RM122-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RN4678-V/RM122
Part Number RN4678-V/RM122
Manufacturer Microchip
Pin Count 33
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - RN4678-V/RM122-3
Released Date Feb 4, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RN4678-V/RM122 Details

Manufacturer Part Number:
RN4678-V/RM122
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MODULE-33
Pin Count:
33
Manufacturer Package Code:
MODULE-33
Reach Compliance Code:
Compliant
Country Of Origin:
Taiwan, Thailand
HTS Code:
8542.31.00.30
Factory Lead Time:
17 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
23
JESD-30 Code:
R-XXMA-N33
Length:
22 mm
Number of Terminals:
33
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-20 °C
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
2.46 mm
Supply Voltage-Max:
2.1 V
Supply Voltage-Min:
1.8 V
Supply Voltage-Nom:
1.9 V
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
1.1 mm
Terminal Position:
UNSPECIFIED
Width:
12 mm
uPs/uCs/Peripheral ICs Type:
RFSOC

RN4678-V/RM122 Frequently Asked Questions (FAQs)

The recommended antenna design for optimal performance is a 1/4 wavelength monopole antenna with a 50-ohm impedance. The antenna should be placed at least 10mm away from the module to ensure optimal radiation patterns.
To configure the module for BLE mode, set the module to Command Mode by sending the '$$$' command. Then, use the 'SET BTMODE 1' command to enable BLE mode. Finally, use the 'EXIT' command to exit Command Mode.
The maximum transmission power of the RN4678-V/RM122 module is +4 dBm (2.5 mW). However, the transmission power can be adjusted using the 'SET TXPOWER' command.
To update the firmware of the module, use the Microchip Technology Inc. provided firmware update tool and follow the instructions provided in the user manual. Ensure that the module is in Bootloader Mode before updating the firmware.
The operating temperature range of the RN4678-V/RM122 module is -40°C to +85°C. However, the module's performance may degrade at extreme temperatures.

Trust Checks

Community Provided

System Verified

Community Approved

RN4678-V/RM122 Overview

Use the download button to access the RN4678-V/RM122 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RN467, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
