RN4678APL-V/RM122 - Microchip

Description: Bluetooth Modules - 802.15.1 Bluetooth 5 Dual Mode with Shield, Antenna Module with ASCII Interface and MFI support FW 1.22

Download RN4678APL-V/RM122 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

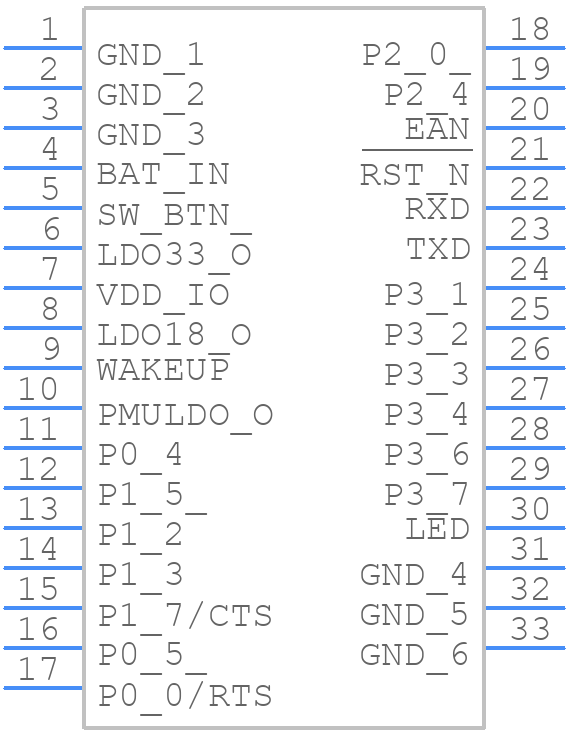

RN4678APL-V/RM122 - Microchip - PCB symbol
click to zoom
PCB Footprints

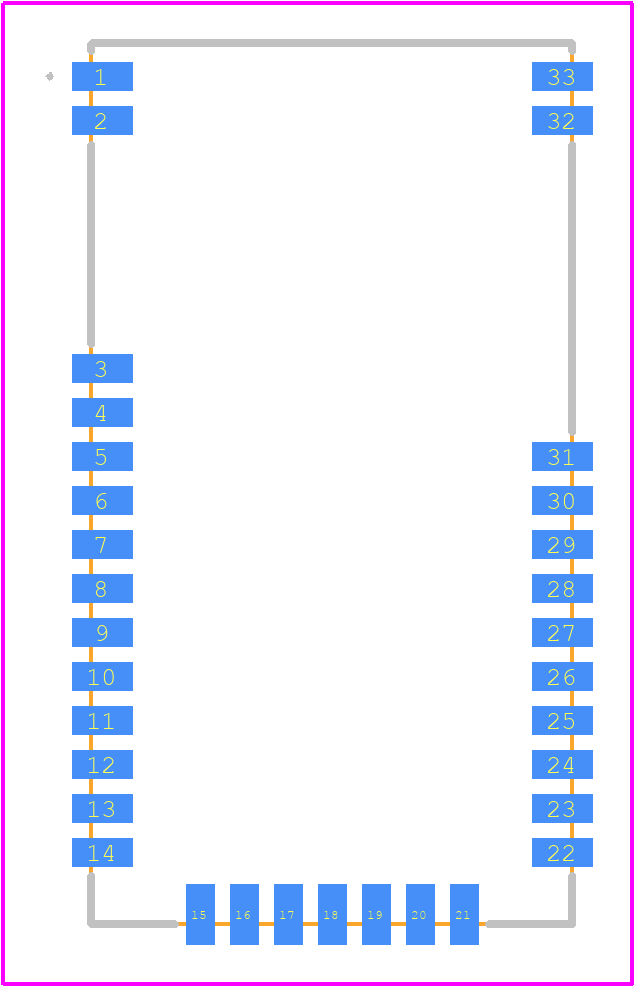

RN4678APL-V/RM122 - Microchip PCB footprint - Other - Other - RN4678APL-V/RM122-2
click to zoom
3D Models
RN4678APL-V/RM122 - Microchip - 3D model - Other - RN4678APL-V/RM122-2
click to zoom

RN4678APL-V/RM122 Details

  • Manufacturer Part Number:

    RN4678APL-V/RM122

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-33

  • Pin Count:

    33

  • Manufacturer Package Code:

    MODULE-33

  • Country Of Origin:

    Taiwan, Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • JESD-30 Code:

    R-XXMA-N33

  • Length:

    22 mm

  • Number of Terminals:

    33

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.46 mm

  • Supply Voltage-Max:

    2.1 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    1.9 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

RN4678APL-V/RM122 Frequently Asked Questions (FAQs)

  • The recommended antenna design for optimal performance is a 50-ohm, quarter-wavelength monopole antenna with a minimum length of 15mm. A PCB antenna or an external antenna can be used, but the latter is recommended for better performance.
  • To configure the module for BLE mode, set the module to Command Mode by sending the '$$$' command, then send the 'SBLE' command to enable BLE mode. You can then use the 'S-' commands to configure the BLE settings.
  • The maximum transmission power of the RN4678APL-V/RM122 module is +4 dBm (2.5 mW). However, the transmission power can be adjusted using the 'SP' command in Command Mode.
  • The firmware of the RN4678APL-V/RM122 module can be updated using the Microchip's RN4678 Development Kit and the XMODEM protocol. The firmware update process is described in the RN4678 Firmware Update Application Note.
  • The operating temperature range of the RN4678APL-V/RM122 module is -40°C to +85°C. However, the module's performance may be affected at extreme temperatures.
