The thermal resistance (Rth) of the RN60D1703FB14 is 250°C/W, which is not explicitly stated in the datasheet. This value can be obtained from Vishay's application notes or by contacting their technical support.
While the datasheet doesn't provide explicit information on high-frequency performance, the RN60D1703FB14 is a thick-film resistor, which generally has a self-resonant frequency in the range of 100 MHz to 1 GHz. It may not be the best choice for very high-frequency applications (e.g., above 500 MHz). For high-frequency applications, consider using thin-film or metal-film resistors instead.
The RN60D1703FB14 has a maximum operating temperature of 155°C, as stated in the datasheet. However, it's essential to consider the derating curve, which shows the resistor's power rating decreases as the temperature increases. Always check the derating curve and ensure the resistor is used within its specified temperature range to maintain reliability and prevent overheating.
The RN60D1703FB14 has a power rating of 1/4 W. To ensure safe operation, calculate the maximum power dissipation (Pd) based on the resistor's value, voltage, and current. Make sure to leave a sufficient margin (e.g., 20-30%) to account for variations in operating conditions and component tolerances.
While not explicitly stated in the datasheet, it's essential to follow good PCB layout practices for resistors, such as keeping the resistor away from heat sources, using a sufficient copper area for heat dissipation, and avoiding narrow traces that can increase the risk of overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RN60D1703FB14 Overview

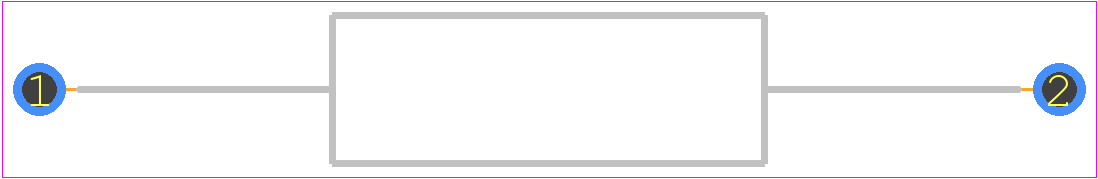

Use the download button to access the RN60D1703FB14 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RN60D,
or try a keyword search, such as Metal Film Resistors
