The recommended PCB layout and land pattern can be found in the Nisshinbo Micro Devices' application note AN-XXXX (available upon request). It provides guidelines for optimal thermal management, signal integrity, and power supply decoupling.
To ensure reliability and longevity, follow the recommended operating temperature range (−40°C to +125°C), use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a thermally conductive PCB material and a heat sink if necessary.
The input capacitor should be a low-ESR, high-frequency capacitor (e.g., X7R or X5R dielectric) with a value between 1 μF to 10 μF. The capacitor's quality and value affect the device's power supply noise rejection, stability, and output voltage ripple.
To troubleshoot output voltage regulation issues, check the input voltage, output load, and feedback network. Verify that the feedback resistors are correctly connected and that the output voltage is within the specified range. Use an oscilloscope to monitor the output voltage and identify any oscillations or noise.
Operating the device beyond the specified maximum output current can lead to reduced reliability, increased thermal stress, and potentially cause damage to the device. It's essential to ensure that the output current is within the specified range to maintain the device's performance and longevity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RP115L281B-E2 Overview

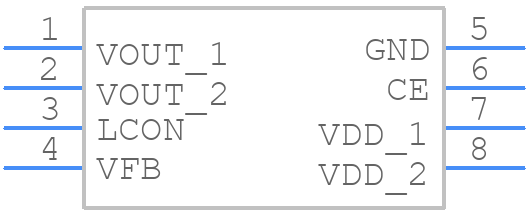

Use the download button to access the RP115L281B-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RP115,
or try a keyword search, such as Linear Regulator ICs
