RP120Q-4824SRW/P footprint, schematic symbol and 3D model by RECOM Power

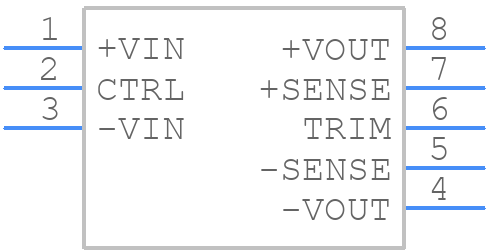

Symbol

click to zoom

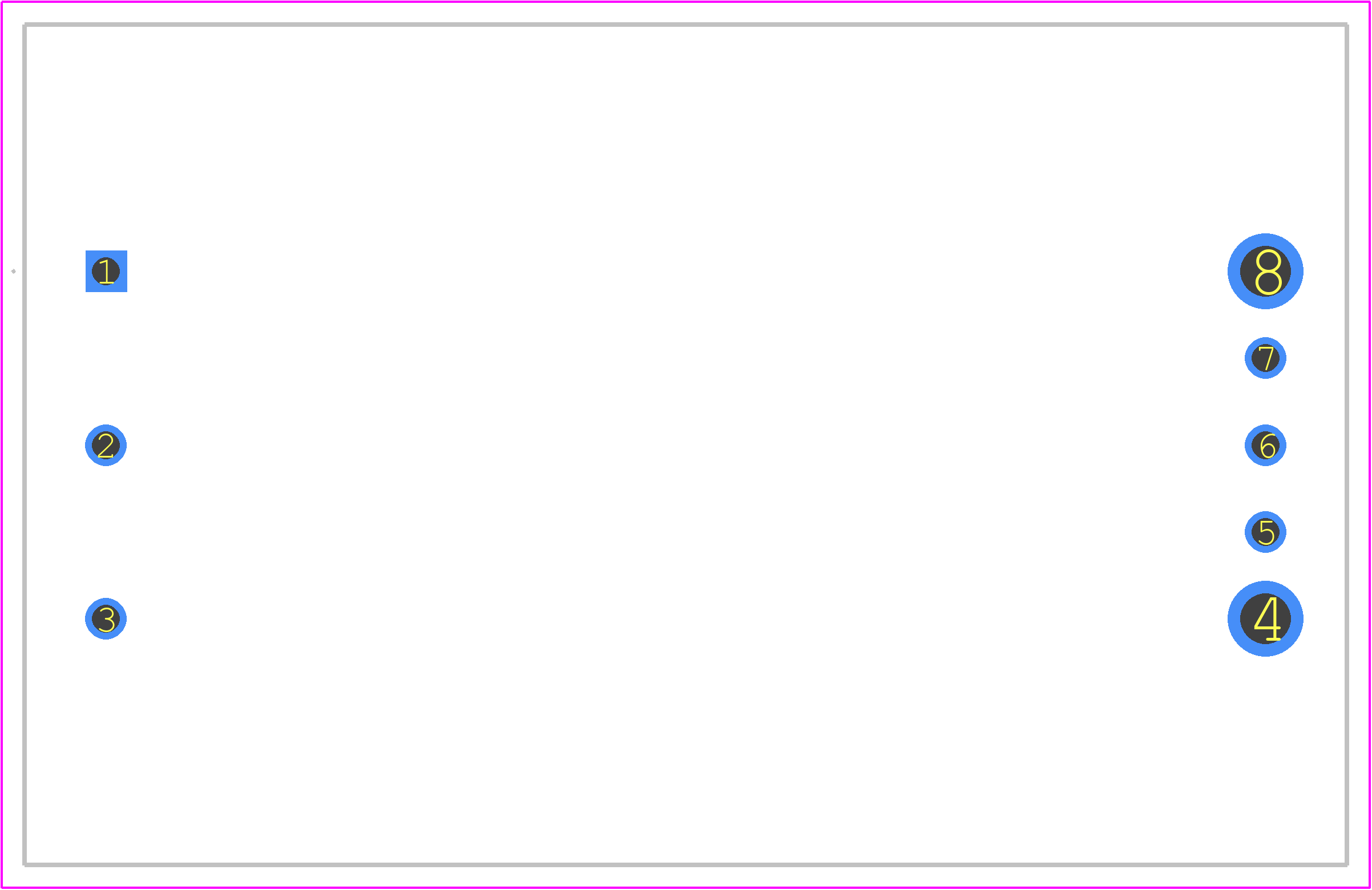

PCB Footprints

RP120Q-4824SRW/P - RECOM Power PCB footprint - Other - Other - 57.9mm x 36.8mm x 12.7mm_2024-3

click to zoom

3D Models

RP120Q-4824SRW/P - RECOM Power - 3D model - Other - 57.9mm x 36.8mm x 12.7mm_2024-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RP120Q-4824SRW/P
Part Number RP120Q-4824SRW/P
Manufacturer RECOM Power
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - 57.9mm x 36.8mm x 12.7mm_2024-3
Released Date Nov 29, 2024
Last Modified Date Nov 29, 2024 12:31 PM UTC
Pinout / Pin List Click Here (Member Only)

RP120Q-4824SRW/P Details

Manufacturer Part Number:
RP120Q-4824SRW/P
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
Module-8
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Date Of Intro:
2016-11-15
Manufacturer:
RECOM Power GmbH
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
75 V
Input Voltage-Min:
16.5 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-PDMA-P8
Length:
57.9 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Output Voltage-Max:
26.4 V
Output Voltage-Min:
19.2 V
Output Voltage-Nom:
24 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
255
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
5
Total Power Output-Max:
120 W
Trim/Adjustable Output:
YES
Width:
36.8 mm

RP120Q-4824SRW/P Frequently Asked Questions (FAQs)

RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 100°C.
To ensure reliable start-up and shutdown, RECOM Power Inc recommends a soft-start circuit to limit the inrush current, and a shutdown circuit to discharge the output capacitors. Additionally, a voltage supervisor can be used to monitor the input voltage and prevent start-up during brownout conditions.
The maximum allowed capacitance on the output of the RP120Q-4824SRW/P is 2200uF. Exceeding this value may cause instability or oscillation in the converter.
Yes, the RP120Q-4824SRW/P is designed to withstand high-vibration environments. However, RECOM Power Inc recommends following the recommended PCB layout and mounting guidelines to ensure reliable operation.
RECOM Power Inc recommends using a multimeter to measure the input and output voltages, and a thermal camera or thermometer to monitor the temperature. Additionally, checking the PCB layout and thermal management system can help identify the root cause of the issue.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RP120Q-4824SRW/P Overview

Use the download button to access the RP120Q-4824SRW/P schematic symbol, PCB footprint, and 3D model.
