RP15-2405SFW - RECOM Power

Description: 15W DC/DC-Converter 'POWERLINE' 2"x1" 1.6kV reg 4:1

Download RP15-2405SFW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RP15-2405SFW - RECOM Power - PCB symbol
click to zoom
PCB Footprints

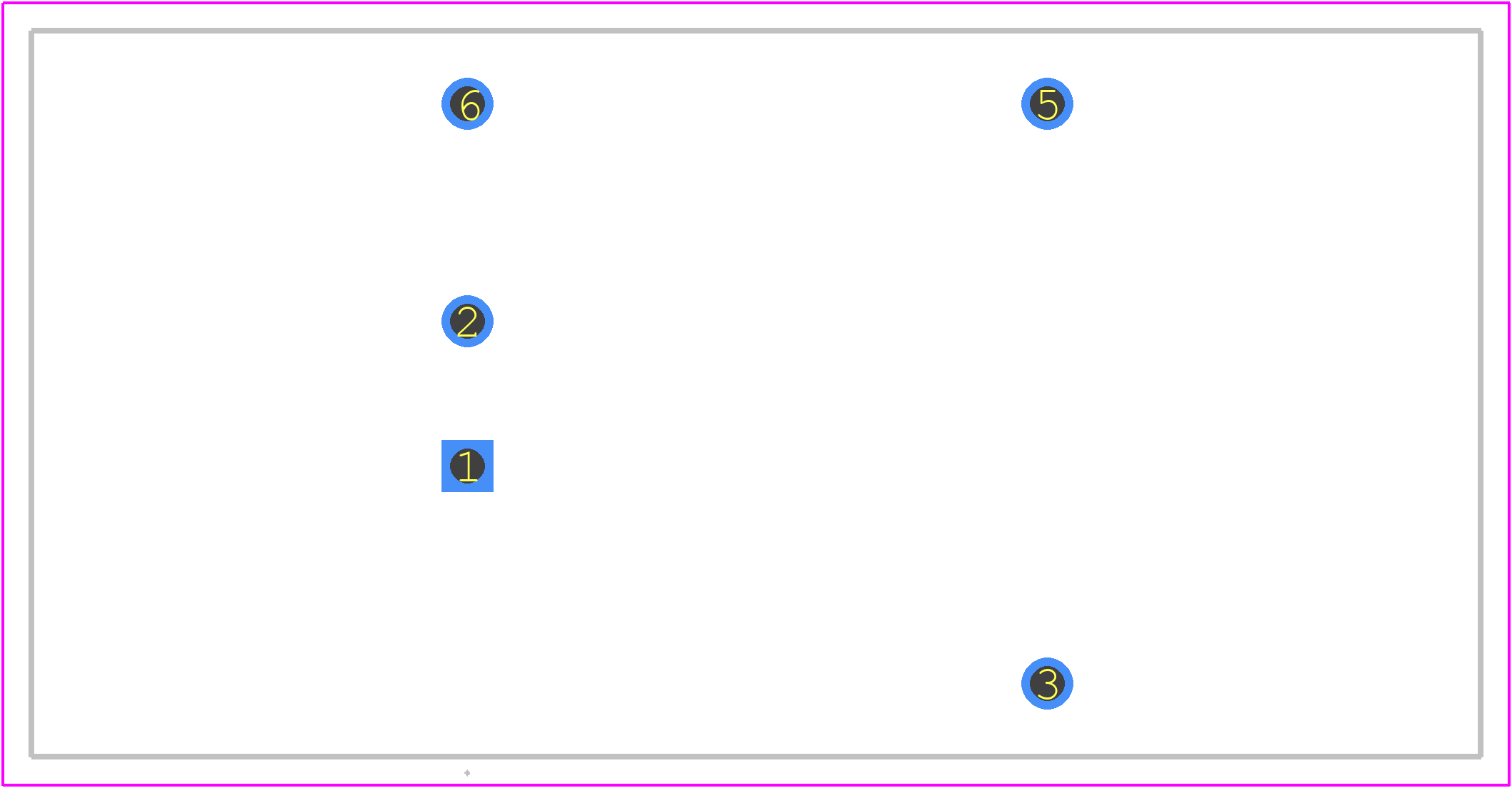

RP15-2405SFW - RECOM Power PCB footprint - Other - Other - RP15-2405SFW-2
click to zoom
3D Models
RP15-2405SFW - RECOM Power - 3D model - Other - RP15-2405SFW-2
click to zoom

RP15-2405SFW Details

  • Manufacturer Part Number:

    RP15-2405SFW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DMA,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-P6

  • Length:

    50.8 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    255

  • Seated Height-Max:

    10.55 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    5

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

RP15-2405SFW Frequently Asked Questions (FAQs)

  • RECOM recommends a PCB layout with a large copper area connected to the tab of the module to ensure good thermal conduction. A minimum of 2 oz copper thickness is recommended.
  • RECOM recommends using a soldering profile with a peak temperature of 240°C for 3-5 seconds. Ensure the module is properly aligned with the PCB pads and use a solder with a melting point above 217°C.
  • The maximum allowed capacitance for the output filter capacitor is 47µF. Exceeding this value may cause instability in the module's output voltage.
  • The RP15-2405SFW is rated for operation up to 80°C ambient temperature. However, derating the output power is recommended for temperatures above 60°C to ensure reliable operation.
  • RECOM recommends using a TVS diode or a surge protector at the input of the module to protect it from voltage surges. The TVS diode should be rated for the maximum expected surge voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RP15-2405SFW Overview

Use the download button to access the RP15-2405SFW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RP15-, or try a keyword search, such as Power Supply Modules
