RP15-243.3SAW - RECOM Power

Description: Recom Isolated DC-DC Converter, Vin 9 → 36 V dc, Vout 3.3V dc, I/O isolation 1600V dc

Download RP15-243.3SAW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RP15-243.3SAW - RECOM Power - PCB symbol
click to zoom

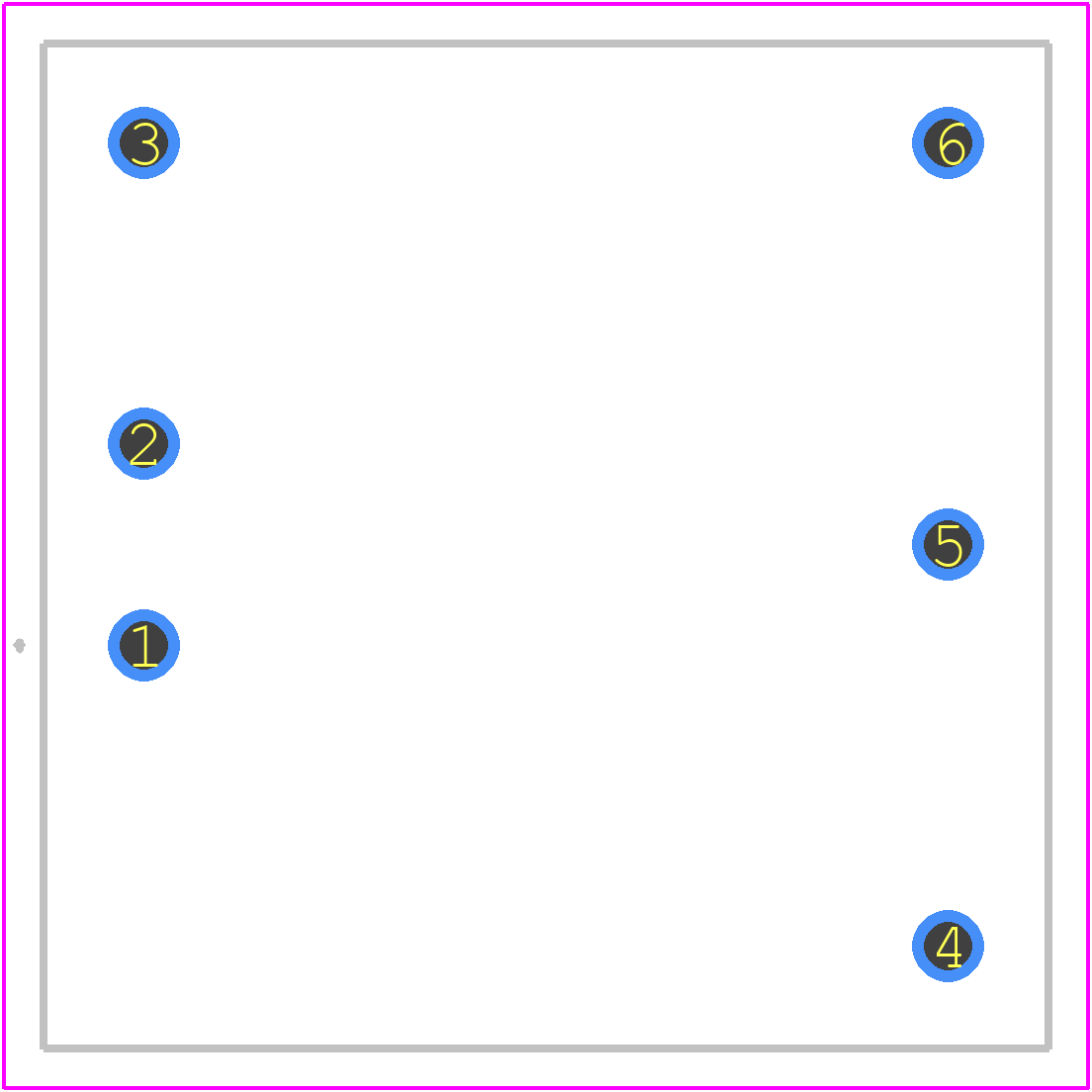

PCB Footprints
RP15-243.3SAW - RECOM Power PCB footprint - Other - Other - RP15-243.3SAW-2
click to zoom
3D Models
RP15-243.3SAW - RECOM Power - 3D model - Other - RP15-243.3SAW-2
click to zoom

RP15-243.3SAW Details

  • Manufacturer Part Number:

    RP15-243.3SAW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    , MODULE,6LEAD,0.8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    3.3495 V

  • Output Voltage-Min:

    3.2505 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    MODULE,6LEAD,0.8

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    255

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Time@Peak Reflow Temperature-Max (s):

    5

  • Total Power Output-Max:

    13.2 W

RP15-243.3SAW Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. Ensure a minimum of 1 oz copper thickness and a 1-inch square copper area for heat sinking.
  • Apply a conformal coating to the module, and ensure the PCB is designed with a moisture-resistant finish. Additionally, consider adding a humidity sensor and alarm to monitor environmental conditions.
  • A low-ESR, X7R or X5R ceramic capacitor with a value of 10-22 μF is recommended. This will help reduce input ripple and ensure stable operation.
  • Yes, the RP15-243.3SAW is suitable for redundant or N+1 configurations. However, ensure proper synchronization and ORing diode implementation to prevent back-feeding and ensure reliable operation.
  • The maximum allowed case temperature is 100°C. Ensure proper heat sinking and airflow to maintain a safe operating temperature.
