RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the RP20-2412SAW is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's recommended to follow proper mounting and screwing procedures to ensure the module is securely fastened to the PCB.
To ensure reliability in high-temperature environments, it's essential to follow the recommended derating curves for output power and ambient temperature. Additionally, ensure good airflow around the module, and consider using a heat sink or fan to keep the temperature within the recommended range.
RECOM recommends using a low-ESR ceramic capacitor with a value of 10-22uF, 50V or higher, placed as close as possible to the input pins of the module. This helps to filter out input noise and ensure stable operation.
Yes, the RP20-2412SAW can be used in redundant or parallel configurations to achieve higher power or redundancy. However, it's essential to follow proper design guidelines and ensure that the modules are properly synchronized and isolated to prevent damage or instability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RP20-2412SAW Overview

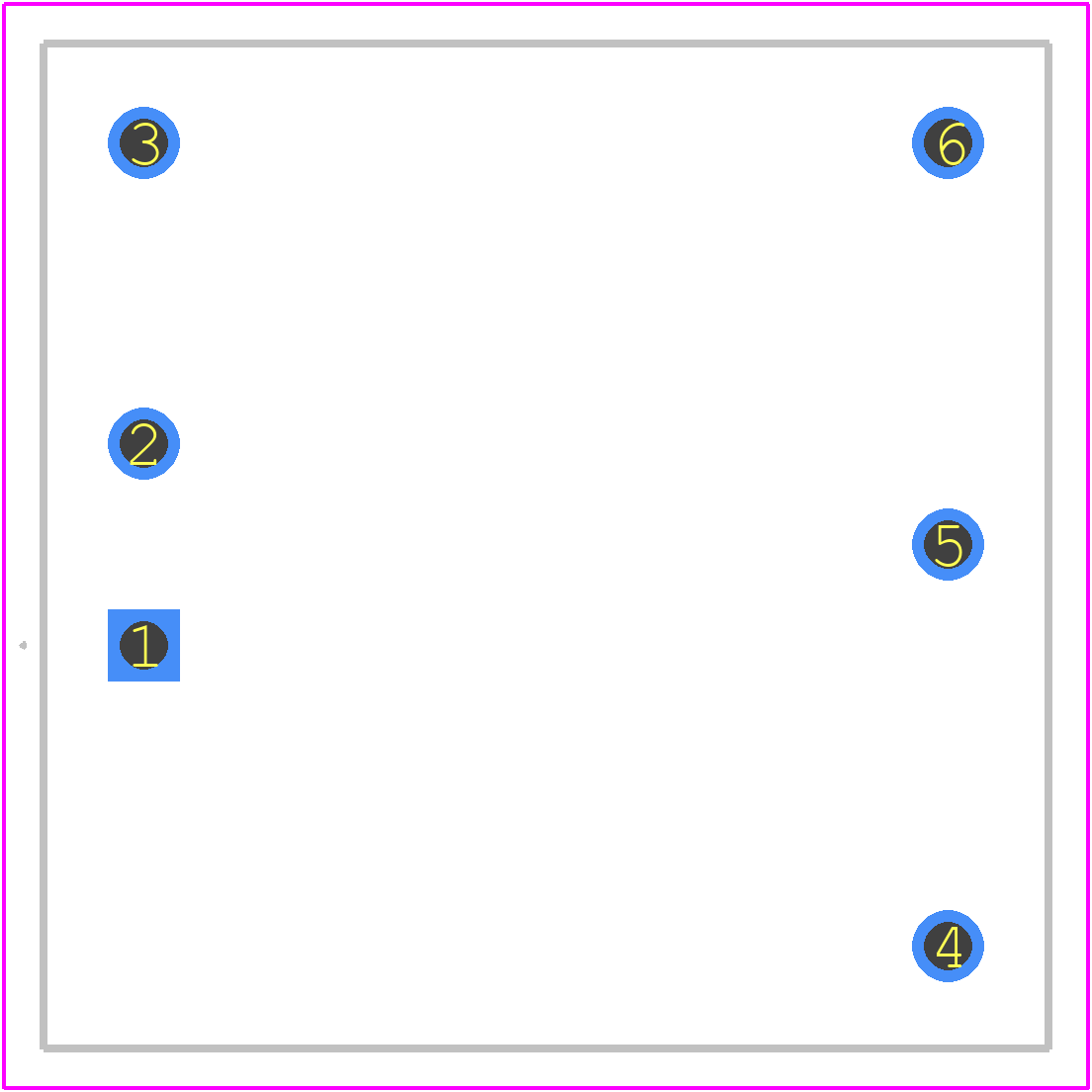

Use the download button to access the RP20-2412SAW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RP20-,
or try a keyword search, such as Power Supply Modules
