RP20-4805SFW footprint, schematic symbol and 3D model by RECOM Power

Symbol

click to zoom

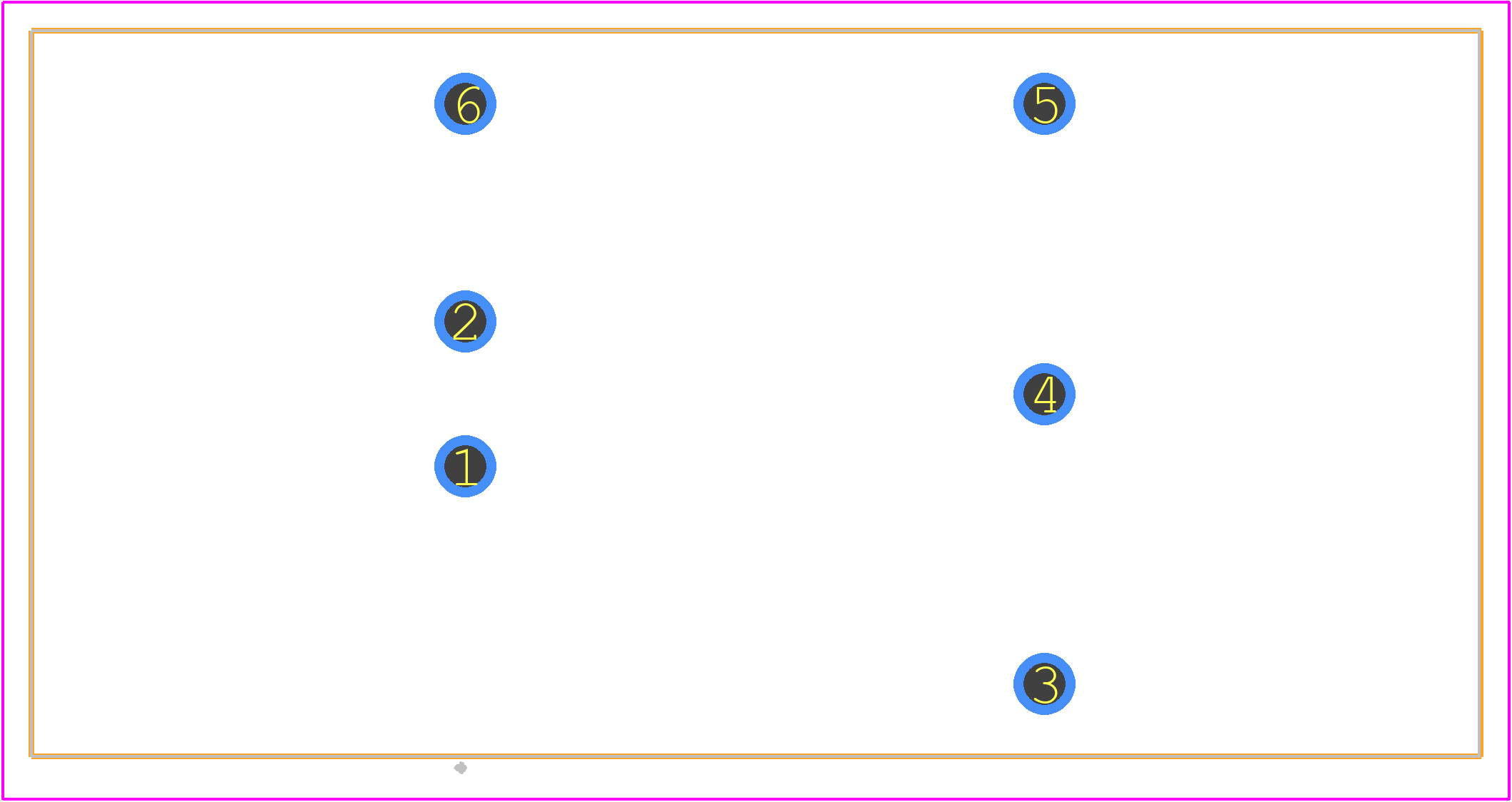

PCB Footprints

RP20-4805SFW - RECOM Power PCB footprint - Other - Other - RP20-2412SFW

click to zoom

3D Models

RP20-4805SFW - RECOM Power - 3D model - Other - RP20-2412SFW

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RP20-4805SFW
Part Number RP20-4805SFW
Manufacturer RECOM Power
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - RP20-2412SFW
Released Date Mar 12, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RP20-4805SFW Details

Manufacturer Part Number:
RP20-4805SFW
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DMA, MODULE,6LEAD,0.8
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
7.7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
75 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-PDMA-P6
JESD-609 Code:
e3
Length:
50.8 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
63 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
4.5 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Equivalence Code:
MODULE,6LEAD,0.8
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
255
Qualification Status:
Not Qualified
Seated Height-Max:
10.55 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Finish:
Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
5
Total Power Output-Max:
20 W
Trim/Adjustable Output:
YES
Width:
25.4 mm

RP20-4805SFW Frequently Asked Questions (FAQs)

RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
To ensure reliable start-up and operation, RECOM Power Inc recommends using a soft-start circuit, limiting the inrush current, and selecting output filter components with a low ESR to minimize voltage drops and oscillations.
RECOM Power Inc provides derating curves for temperature, altitude, and humidity in their application notes and technical support documents. These curves help engineers determine the maximum power rating under various environmental conditions.
RECOM Power Inc recommends using external OVP and UVP circuits, such as zener diodes and voltage supervisors, to protect the converter from input voltage faults and ensure reliable operation.
RECOM Power Inc provides EMI filter design guidelines and recommendations in their application notes and technical support documents to help engineers meet CISPR 22 and FCC Part 15 Class B emissions standards.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RP20-4805SFW Overview

Use the download button to access the RP20-4805SFW schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RP20-, or try a keyword search, such as Power Supply Modules
