RP30-4805SFW footprint, schematic symbol and 3D model by RECOM Power

Symbol

click to zoom

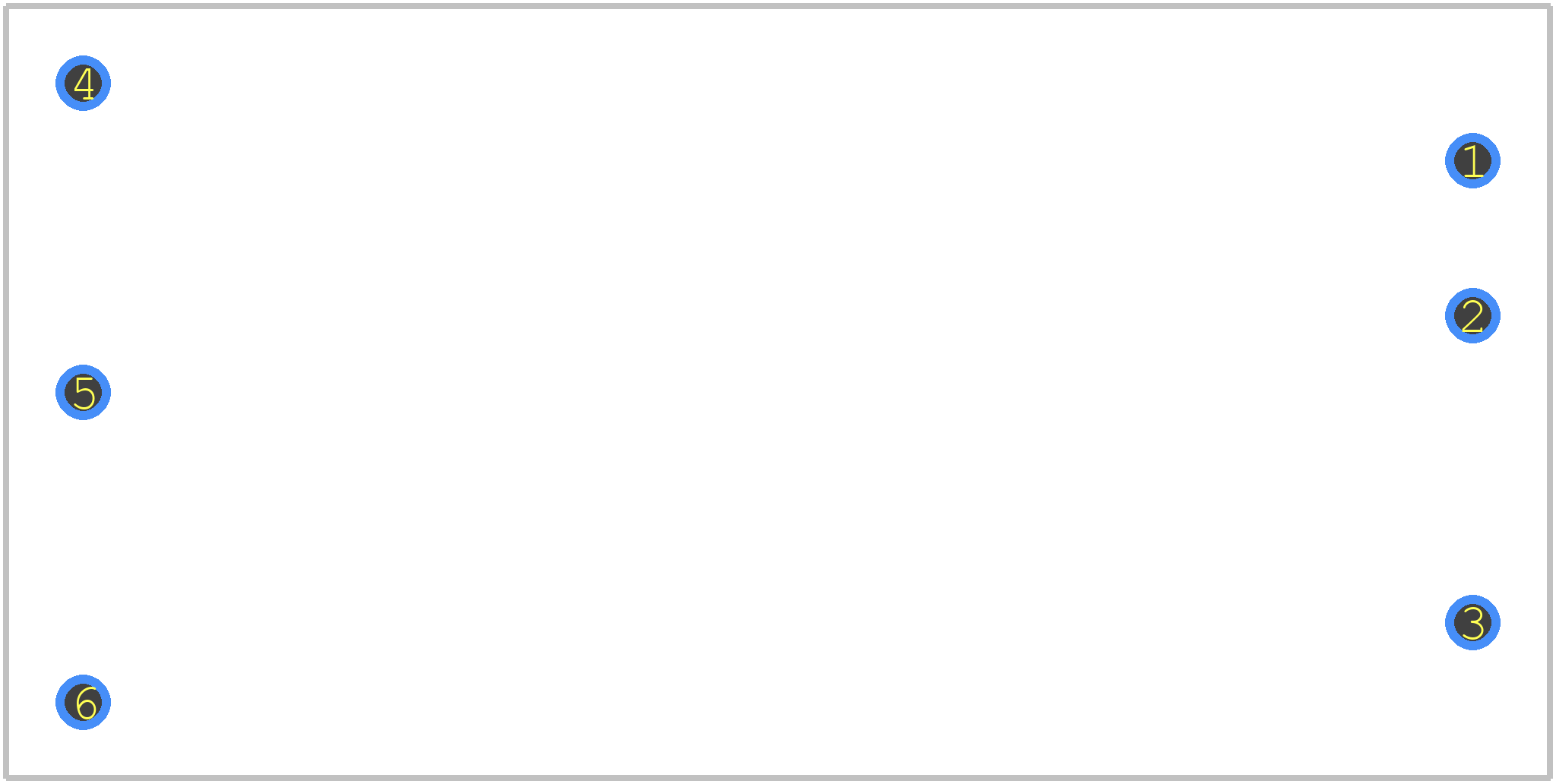

PCB Footprints

RP30-4805SFW - RECOM Power PCB footprint - Other - Other - RP30-4805SFW

click to zoom

3D Models

RP30-4805SFW - RECOM Power - 3D model - Other - RP30-4805SFW

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RP30-4805SFW
Part Number RP30-4805SFW
Manufacturer RECOM Power
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - RP30-4805SFW
Released Date May 29, 2016
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RP30-4805SFW Details

Manufacturer Part Number:
RP30-4805SFW
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DMA, MODULE,6LEAD,1.8
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
7.7
Additional Feature:
SEATED HGT-NOM
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
75 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-XDMA-T6
Length:
50.8 mm
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
55 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
4.5 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Equivalence Code:
MODULE,6LEAD,1.8
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
255
Qualification Status:
Not Qualified
Seated Height-Max:
10.2 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
THROUGH-HOLE
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
5
Total Power Output-Max:
30 W
Trim/Adjustable Output:
YES
Width:
25.4 mm

RP30-4805SFW Frequently Asked Questions (FAQs)

RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
To ensure reliable start-up and operation, RECOM Power Inc recommends using a soft-start circuit, limiting the inrush current, and ensuring the output filter is properly sized and damped to prevent oscillations.
The maximum allowable voltage deviation on the input pins is ±10% of the nominal input voltage, but RECOM Power Inc recommends keeping the input voltage within ±5% for optimal performance and reliability.
The RP30-4805SFW is designed for operation in a temperature range of -40°C to 85°C and humidity up to 95% RH, but RECOM Power Inc recommends taking additional precautions such as conformal coating and sealing to ensure reliability in harsh environments.
RECOM Power Inc recommends using a systematic approach to troubleshoot and debug issues, including checking the input voltage, output voltage, and current, as well as monitoring the temperature and voltage stress on the device.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RP30-4805SFW Overview

Use the download button to access the RP30-4805SFW schematic symbol, PCB footprint, and 3D model.
