RP402K001A - Nisshinbo

Description: Low Voltage Start-up Typ. 0.7 V Input Voltage Range Fixed Output Voltage Type: 0.6 V to 4.8 V Adjustable Output Voltage Type: 0.6 V to 4.6 V High Efficiency 94% (100 mA/ 5.0 V, VIN = 3.6 V, 25°C) 90% (1 mA/ 5.0 V, VIN = 3.6 V, 25°C) Output Current 800 mA: VIN = 3.6 V, VOUT = 5.0 V LX Driver ON Resistance NMOS/ PMOS: 0.20 Ω (VOUT = 5.0 V, 25°C) PWM Oscillator Frequency 1.2 MHz (Normal PWM), 1.0 MHz (Forced PWM) Output Voltage Range· Fixed Output Voltage Type: 1.8 V to 5.5 V, 0.1 V s

Download RP402K001A Model

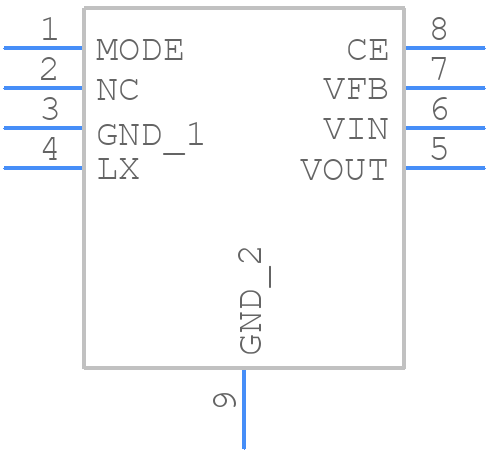

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RP402K001A - Nisshinbo PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN(PL)2020-8B../-1
click to zoom
3D Models
RP402K001A - Nisshinbo  - 3D model - Small Outline No-lead - DFN(PL)2020-8B../-1
click to zoom

RP402K001A Details

  • Manufacturer Part Number:

    RP402K001A

  • Manufacturer:

    Nisshinbo Micro Devices

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RP402K001A Overview

Use the download button to access the RP402K001A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RP402, or try a keyword search, such as Switching Regulator or Controllers
