Part Image

RP509Z111B - Nisshinbo

Description: Input Voltage Range (Maximum Rating) ····························2.3 V to 5.5 V (6.5 V) • Output Voltage Range (Fixed Output Voltage Type) ·············0.6 V to 3.3 V, settable in 0.1 V steps (Adjustable Output Voltage Type) ·······0.6 V to 5.5 V • Output Voltage Accuracy (Fixed Output Voltage Type) ··········±1.5% (VSET(2) ≥ 1.2 V), ±18 mV (VSET < 1.2 V) • Feedback Voltage Accuracy (Adjustable Output Voltage Type) ···· ±9 mV (VFB = 0.6 V) • Output Voltage/Feedback Voltage Temperature Coefficient····

Download RP509Z111B Model

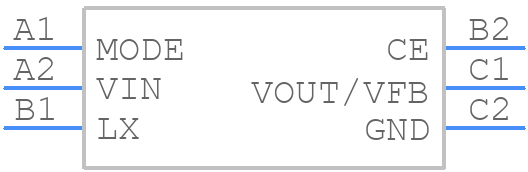

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RP509Z111B - Nisshinbo PCB footprint - BGA - BGA - WLCSP-6-P6 Package
click to zoom
3D Models
RP509Z111B - Nisshinbo  - 3D model - BGA - WLCSP-6-P6 Package
click to zoom

RP509Z111B Details

  • Manufacturer Part Number:

    RP509Z111B

  • Manufacturer:

    Nisshinbo Micro Devices

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RP509Z111B Overview

Use the download button to access the RP509Z111B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RP509, or try a keyword search, such as Switching Regulator or Controllers
