RP604K301A-TR - Ricoh

Description: Switching Voltage Regulators Ultra-low Quiescent Current (IQ = 0.3 A), 300 mA, Buck-Boost DC/DC Converter

Download RP604K301A-TR Model

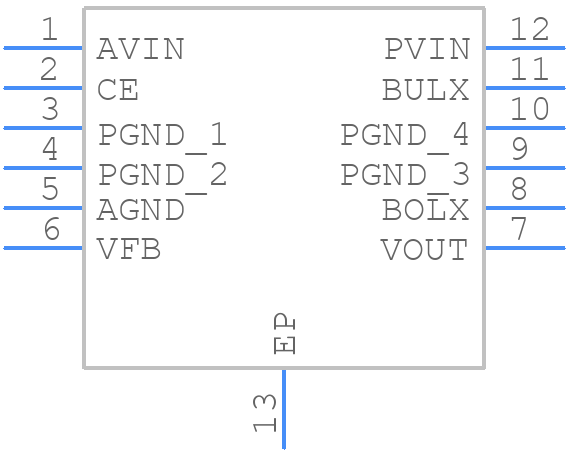

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RP604K301A-TR - Ricoh PCB footprint - Small Outline No-lead - Small Outline No-lead - RP605K--
click to zoom
3D Models
RP604K301A-TR - Ricoh  - 3D model - Small Outline No-lead - RP605K--
click to zoom

RP604K301A-TR Details

  • Manufacturer Part Number:

    RP604K301A-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-11-28

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

RP604K301A-TR Frequently Asked Questions (FAQs)

  • Ricoh recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ricoh recommends following the derating guidelines in the datasheet, and ensuring that the device is operated within the specified temperature range. Additionally, a heat sink or thermal management system can be used to keep the device temperature within a safe operating range.
  • Ricoh recommends a 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric, placed as close to the VIN pin as possible, to ensure stable operation and minimize noise.
  • The RP604K301A-TR is designed for high-current applications, but the maximum output current is limited to 3A. Ensure that the device is operated within the specified current range and that the PCB is designed to handle the high current.
  • Ricoh recommends using a TVS diode or a transient voltage suppressor in parallel with the input capacitor to protect the regulator from input voltage transients and surges.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RP604K301A-TR Overview

Use the download button to access the RP604K301A-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RP604, or try a keyword search, such as Switching Regulator or Controllers
