RP604K331A-TR - Nisshinbo

Description: Ultra-low Quiescent Current (IQ = 0.3 μA), 300 mA, Buck-Boost DC/DC Converter

Download RP604K331A-TR Model

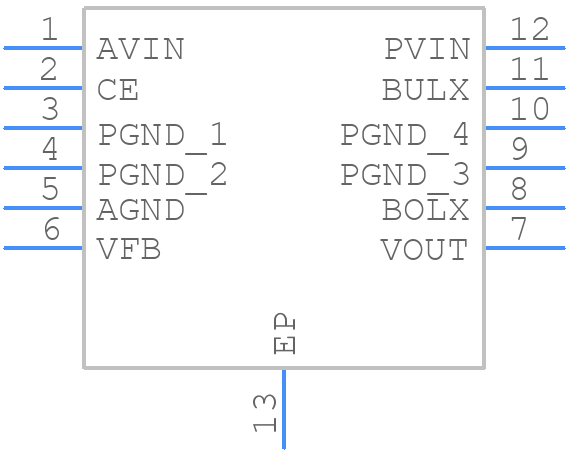

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RP604K331A-TR - Nisshinbo PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN(PLP)2730-12
click to zoom
3D Models
RP604K331A-TR - Nisshinbo  - 3D model - Small Outline No-lead - DFN(PLP)2730-12
click to zoom

RP604K331A-TR Details

  • Manufacturer Part Number:

    RP604K331A-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PDSO-N12

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    3.349 V

  • Output Voltage-Min:

    3.251 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HUSON

  • Package Equivalence Code:

    SOLCC12,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, ULTRA THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2.7 mm

RP604K331A-TR Frequently Asked Questions (FAQs)

  • The recommended land pattern for RP604K331A-TR is a rectangular pad with a size of 1.5mm x 0.8mm, with a solder mask opening of 1.2mm x 0.5mm. The pad should be centered on the component and have a non-solder mask defined (NSMD) pad shape.
  • To handle thermal considerations for RP604K331A-TR, ensure good thermal conduction by using a thermal pad on the PCB, and consider using thermal vias to dissipate heat. Also, ensure that the component is not exposed to high temperatures during reflow soldering.
  • The recommended soldering profile for RP604K331A-TR is a peak temperature of 240°C, with a dwell time of 30-60 seconds above 217°C. The soldering process should be done in a nitrogen atmosphere to prevent oxidation.
  • To ensure the reliability of RP604K331A-TR in high-humidity environments, apply a conformal coating to the PCB, and consider using a moisture-resistant package or a hermetically sealed package. Also, ensure that the component is stored in a dry environment before assembly.
  • To handle RP604K331A-TR safely, wear an ESD wrist strap or use an ESD mat, and ensure that the workspace is ESD-protected. Avoid touching the component pins or handling the component in a way that could generate static electricity.
