RP604Z291A - Nisshinbo

Description: Input Voltage: 1.8 V to 5.5 V Output Voltage: 1.6 V to 5.2 V, 0.1 V step Output Voltage Accuracy: ±1.5% Maximum Output Current: 300 mA at Buck Built-in Driver On-resistance (RP604Z, VIN = 3.6 V): PMOS = Typ.0.12 Ω, NMOS = Typ. 0.12 Ω Operating Quiescent Current (IQ ): 0.3 µA Standby Current: 0.01 µA Protection Features: UVLO, OVP, LX Peak Current, and Thermal Shutdown

Download RP604Z291A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

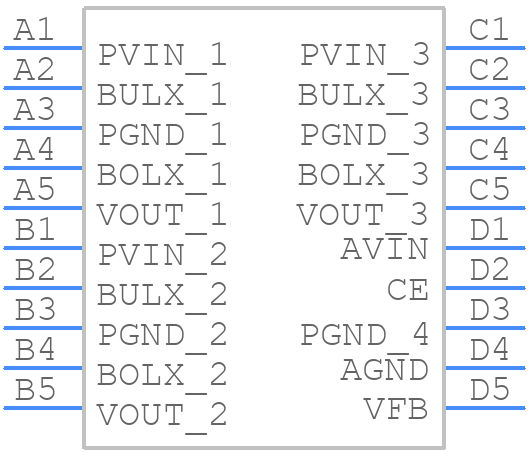

RP604Z291A - Nisshinbo - PCB symbol
