RP604Z301A-E2-F - Ricoh

Description: Switching Voltage Regulators Ultra-low Quiescent Current (IQ = 0.3 uA), 300 mA, Buck-Boost DC/DC Converter

Download RP604Z301A-E2-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

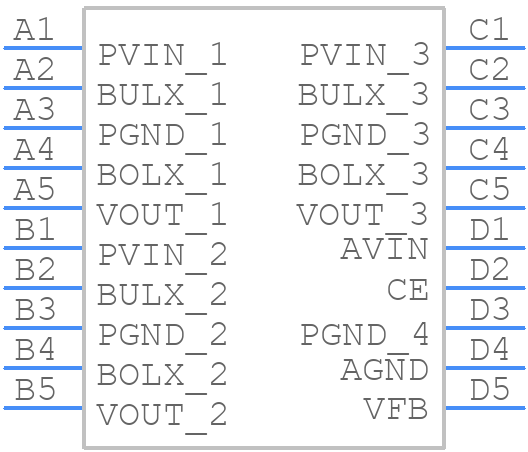

RP604Z301A-E2-F - Ricoh - PCB symbol
click to zoom
PCB Footprints
RP604Z301A-E2-F - Ricoh PCB footprint - BGA - BGA - WLCSP-20-P2
click to zoom

RP604Z301A-E2-F Details

  • Manufacturer Part Number:

    RP604Z301A-E2-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-11-28

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RP604Z301A-E2-F Overview

Use the download button to access the RP604Z301A-E2-F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RP604, or try a keyword search, such as Switching Regulator or Controllers
