RPA150E-4812SEW/P footprint, schematic symbol and 3D model by RECOM Power

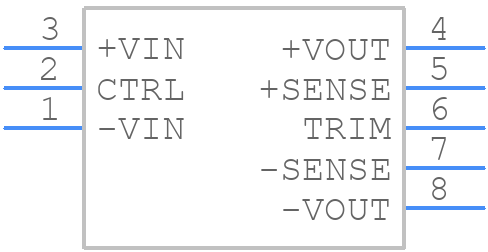

Symbol

click to zoom

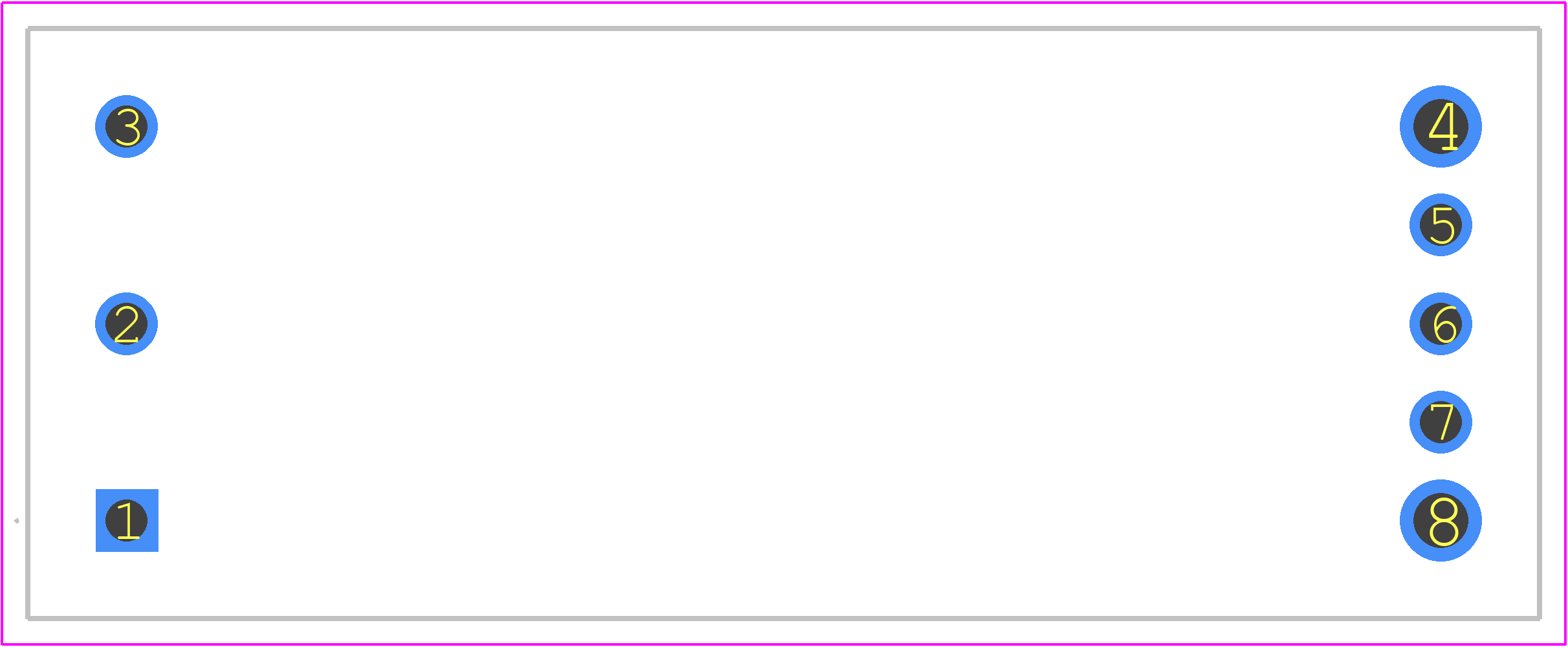

PCB Footprints

RPA150E-4812SEW/P - RECOM Power PCB footprint - Other - Other - RPA150E-4812SEW/P-1

click to zoom

3D Models

RPA150E-4812SEW/P - RECOM Power - 3D model - Other - RPA150E-4812SEW/P-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RPA150E-4812SEW/P
Part Number RPA150E-4812SEW/P
Manufacturer RECOM Power
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - RPA150E-4812SEW/P-1
Released Date Aug 23, 2022
Last Modified Date Aug 18, 2023 8:16 PM UTC
Pinout / Pin List Click Here (Member Only)

RPA150E-4812SEW/P Details

Manufacturer Part Number:
RPA150E-4812SEW/P
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
Module-8
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
7.3
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CB
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
91%
Input Voltage-Max:
60 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-PDMA-P8
Length:
58.4 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
13 A
Output Voltage-Max:
14.4 V
Output Voltage-Min:
9.6 V
Output Voltage-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER CURRENT; OVER VOLTAGE
Ripple Voltage (Main Out):
0.03 Vrms
Seated Height-Max:
14 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
150 W
Trim/Adjustable Output:
YES
Width:
22.8 mm

RPA150E-4812SEW/P Frequently Asked Questions (FAQs)

RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
To ensure reliability in high-vibration environments, RECOM Power Inc recommends following the recommended PCB layout and thermal management, and using a vibration-resistant mounting method such as screwing or adhesive mounting.
The maximum allowable capacitance for the input and output capacitors is 220uF and 100uF respectively, as specified in the datasheet. Exceeding these values may affect the converter's stability and performance.
Yes, the RPA150E-4812SEW/P can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper synchronization and current sharing.
RECOM Power Inc recommends using a pi-filter configuration with a common-mode choke and X-capacitors on the input side, and a LC-filter configuration on the output side to minimize EMI and noise.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RPA150E-4812SEW/P Overview

Use the download button to access the RPA150E-4812SEW/P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RPA15, or try a keyword search, such as Power Supply Modules
