RPA150E-4824SEW/P footprint, schematic symbol and 3D model by RECOM Power

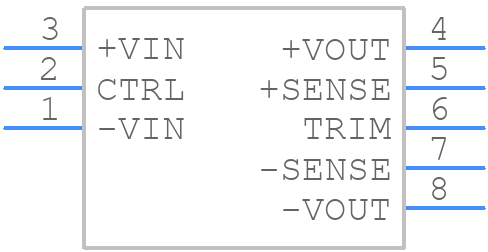

Symbol

click to zoom

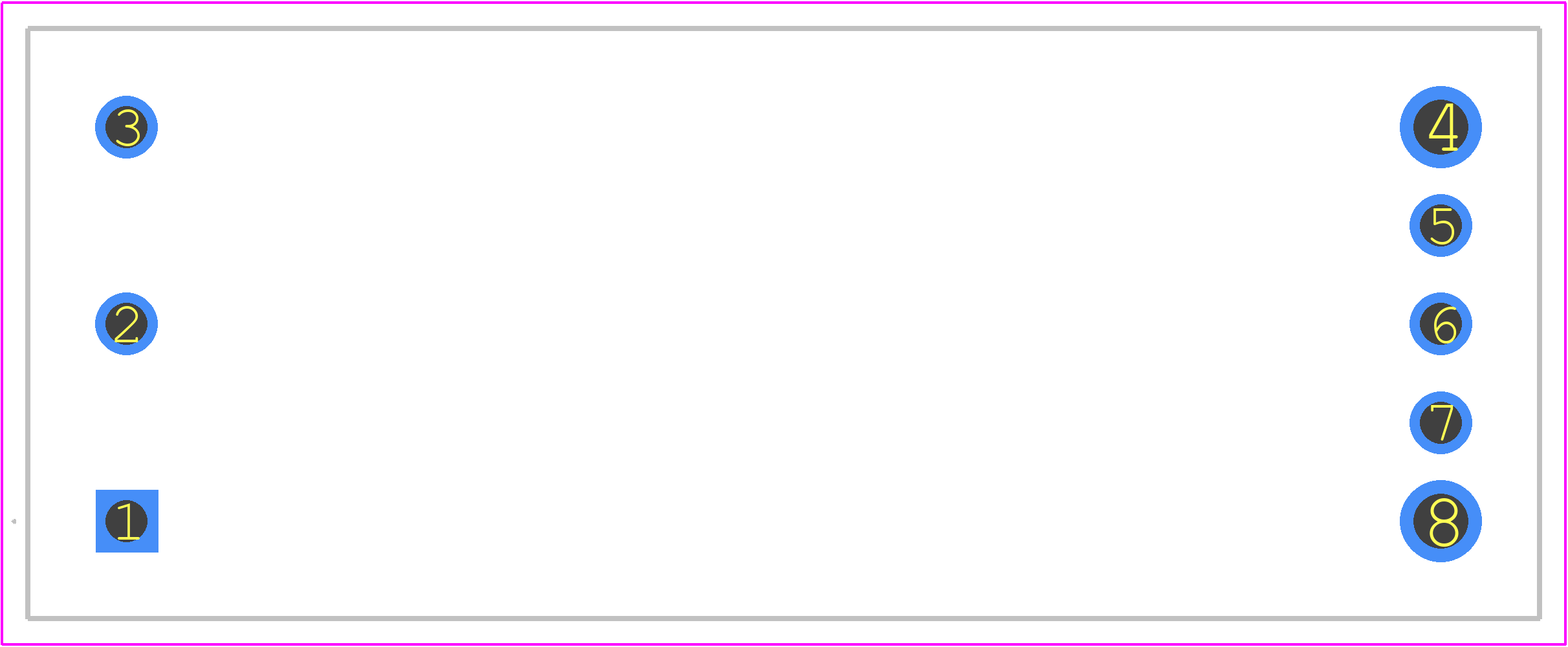

PCB Footprints

RPA150E-4824SEW/P - RECOM Power PCB footprint - Other - Other - RPA150E-4824SEW/P-2

click to zoom

3D Models

RPA150E-4824SEW/P - RECOM Power - 3D model - Other - RPA150E-4824SEW/P-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RPA150E-4824SEW/P
Part Number RPA150E-4824SEW/P
Manufacturer RECOM Power
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - RPA150E-4824SEW/P-2
Released Date Aug 23, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RPA150E-4824SEW/P Details

Manufacturer Part Number:
RPA150E-4824SEW/P
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
Module-8
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
7.3
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CB
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
92%
Input Voltage-Max:
60 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-PDMA-P8
Length:
58.4 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6 A
Output Voltage-Max:
28.8 V
Output Voltage-Min:
19.2 V
Output Voltage-Nom:
24 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER CURRENT; OVER VOLTAGE
Ripple Voltage (Main Out):
0.0813 Vrms
Seated Height-Max:
14 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
144 W
Trim/Adjustable Output:
YES
Width:
22.8 mm

RPA150E-4824SEW/P Frequently Asked Questions (FAQs)

RECOM Power Inc recommends a multi-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of at least 1W/mK should be used between the module and the heat sink.
To ensure reliable start-up and shutdown, RECOM Power Inc recommends a soft-start circuit to limit the inrush current. A voltage supervisor or a power-good signal can be used to monitor the output voltage and prevent the converter from starting up with an invalid input voltage.
The maximum allowed capacitance on the output is 2200uF. Exceeding this value may cause instability or oscillation in the converter. RECOM Power Inc recommends using a capacitance value that is as close to the recommended value as possible.
Yes, the RPA150E-4824SEW/P is designed to withstand high-vibration environments. However, RECOM Power Inc recommends following the recommended PCB layout and thermal management guidelines to ensure reliable operation. Additionally, the converter should be securely fastened to the PCB to prevent mechanical stress.
RECOM Power Inc recommends a fuse rating of at least 5A to protect the converter from input overcurrent conditions. The fuse should be located as close to the input terminals as possible to minimize the risk of damage to the converter.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RPA150E-4824SEW/P Overview

Use the download button to access the RPA150E-4824SEW/P schematic symbol, PCB footprint, and 3D model.
