RPA150Q-11054SRUW/P footprint, schematic symbol and 3D model by RECOM Power

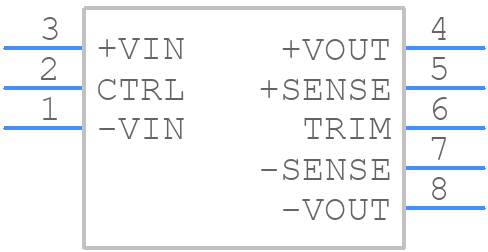

Symbol

click to zoom

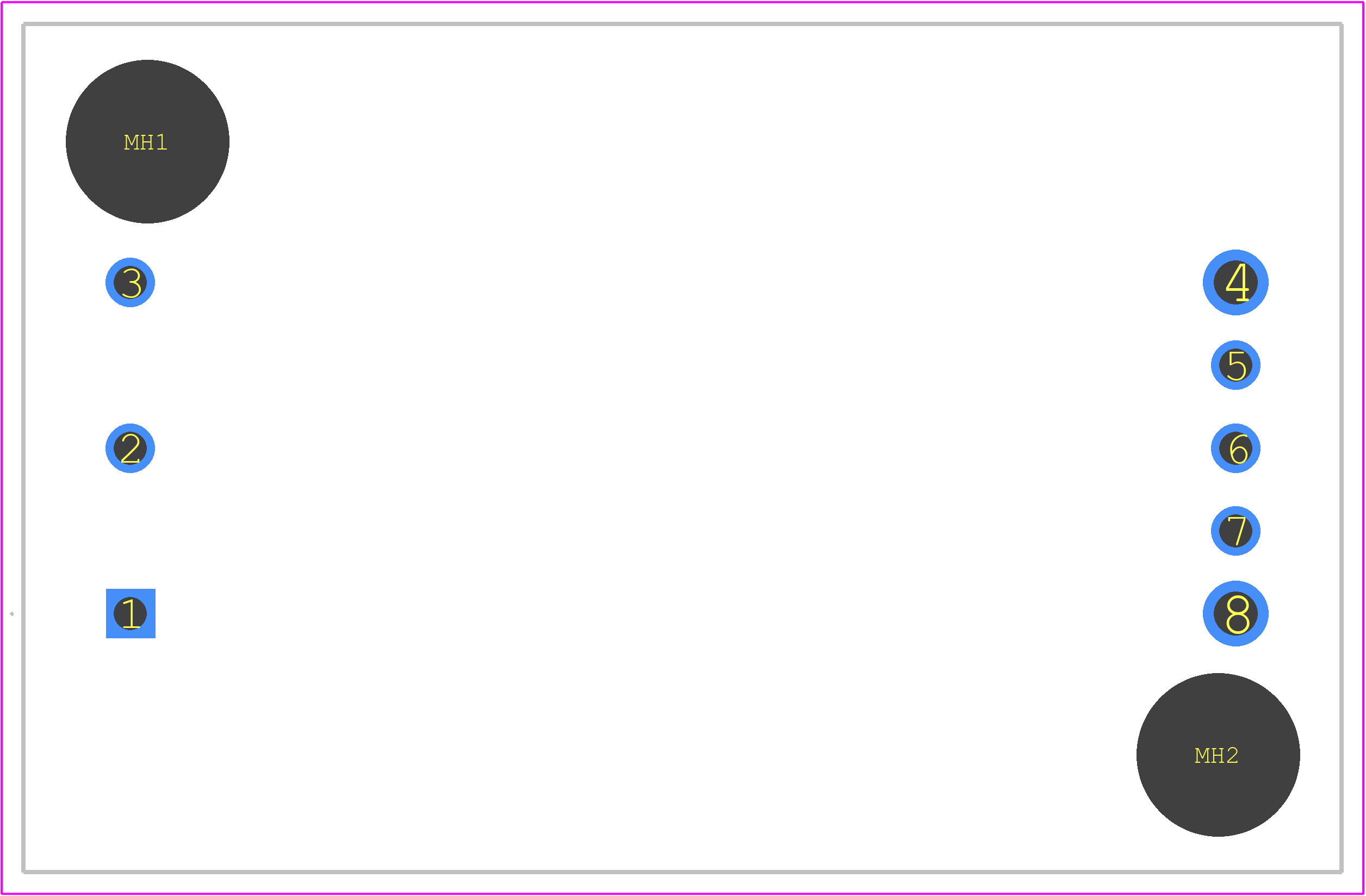

PCB Footprints

RPA150Q-11054SRUW/P - RECOM Power PCB footprint - Other - Other - RPA150Q-11054SRUW/P-2

click to zoom

3D Models

RPA150Q-11054SRUW/P - RECOM Power - 3D model - Other - RPA150Q-11054SRUW/P-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RPA150Q-11054SRUW/P
Part Number RPA150Q-11054SRUW/P
Manufacturer RECOM Power
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - RPA150Q-11054SRUW/P-2
Released Date Nov 29, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RPA150Q-11054SRUW/P Details

Manufacturer Part Number:
RPA150Q-11054SRUW/P
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
DMA,
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
0
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CAN, CSA, IEC, UL
Efficiency (Main Output):
89%
Input Voltage-Max:
170 V
Input Voltage-Min:
14.4 V
Input Voltage-Nom:
110 V
JESD-30 Code:
R-PDMA-P8
Length:
60.6 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2.8 A
Output Voltage-Max:
59.4 V
Output Voltage-Min:
43.2 V
Output Voltage-Nom:
54 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER VOLTAGE; OVER CURRENT; OVER TEMPERATURE
Screening Level:
EN/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
150 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.41 s
Width:
39 mm

RPA150Q-11054SRUW/P Frequently Asked Questions (FAQs)

RECOM Power Inc recommends a PCB layout with a large copper area underneath the module to dissipate heat effectively. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to ensure good heat dissipation.
Yes, the RPA150Q-11054SRUW/P is designed to withstand high vibrations. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibrations. RECOM Power Inc recommends following the IPC-9592 standard for vibration testing.
The maximum allowed capacitance for the output filter is 10uF. Exceeding this value may cause instability in the output voltage. It's essential to follow the recommended output filter configuration in the datasheet to ensure stable operation.
The RPA150Q-11054SRUW/P is designed to operate in a humid environment, but it's essential to follow the recommended conformal coating and sealing procedures to prevent moisture ingress. RECOM Power Inc recommends following the IPC-J-STD-001 standard for conformal coating.
The recommended input fuse rating is 5A slow-blow. This ensures that the module is protected from input overcurrent conditions and prevents damage to the internal components.
