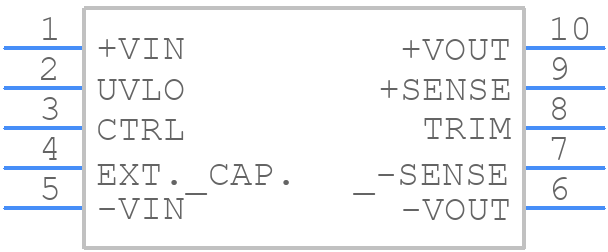

RPA200H-11012SRUW/P footprint, schematic symbol and 3D model by RECOM Power

Symbol

click to zoom

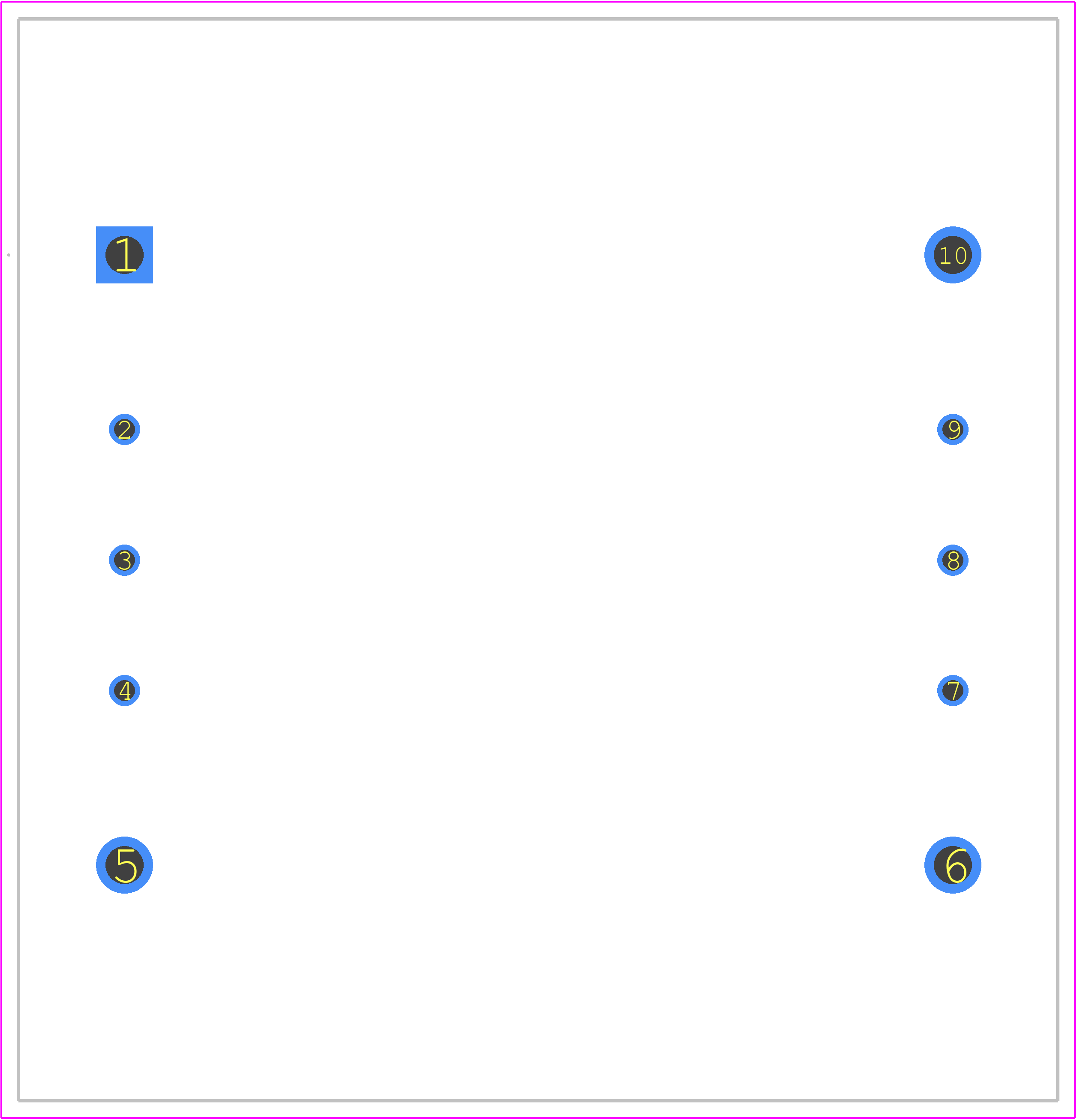

PCB Footprints

RPA200H-11012SRUW/P - RECOM Power PCB footprint - Other - Other - 10-DIP Module

click to zoom

3D Models

RPA200H-11012SRUW/P - RECOM Power - 3D model - Other - 10-DIP Module

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RPA200H-11012SRUW/P
Part Number RPA200H-11012SRUW/P
Manufacturer RECOM Power
Pin Count 10
Part Category Power Supply
Package Category Other
Footprint Name Other - 10-DIP Module
Released Date Jul 9, 2026
Last Modified Date Jul 9, 2026 6:34 AM UTC
Pinout / Pin List Click Here (Member Only)

RPA200H-11012SRUW/P Details

Manufacturer Part Number:
RPA200H-11012SRUW/P
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Date Of Intro:
2018-05-09
Manufacturer:
RECOM Power GmbH
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CAN, CB, CE, CSA, C-UL-US, EAC, EN, EU, IEC, UL
Efficiency (Main Output):
90%
Input Voltage-Max:
140 V
Input Voltage-Min:
16.5 V
Input Voltage-Nom:
110 V
JESD-30 Code:
R-PDMA-P10
Length:
63.1 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
10
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
16.7 A
Output Voltage-Max:
13.2 V
Output Voltage-Min:
9.6 V
Output Voltage-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Equivalence Code:
MODULE,10LEAD,1.9
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER CURRENT; OVER VOLTAGE; OVER TEMPERATURE
Ripple Voltage (Main Out):
0.123725 Vrms
Screening Level:
EN 45545-2; EN 50155
Seated Height-Max:
13.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
200 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.46 s
Width:
60.6 mm

RPA200H-11012SRUW/P Frequently Asked Questions (FAQs)

RECOM Power Inc recommends a PCB layout with a large copper area underneath the module to dissipate heat effectively. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to ensure good heat dissipation.
Yes, the RPA200H-11012SRUW/P is designed to withstand high vibrations. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibrations. RECOM Power Inc recommends following the IPC-9592 standard for vibration testing.
To ensure EMC, RECOM Power Inc recommends following the guidelines outlined in the EN 55022 and EN 55024 standards. Additionally, the module should be placed at least 10 mm away from any sensitive components, and a metal shield or screen should be used to enclose the module.
The RPA200H-11012SRUW/P has a maximum allowable temperature derating of 2.5% per °C above 40°C. This means that for every 1°C increase in temperature above 40°C, the output power should be reduced by 2.5% to ensure reliable operation.
Yes, the RPA200H-11012SRUW/P is designed to operate in humid environments. However, it's essential to ensure that the module is conformally coated to protect it from moisture. RECOM Power Inc recommends following the IPC-J-STD-001 standard for conformal coating.
