RPL-3.0-R - RECOM Power

Description: 3.0 Amp DC/DC Converter, 10 Pad LGA Package

Download RPL-3.0-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

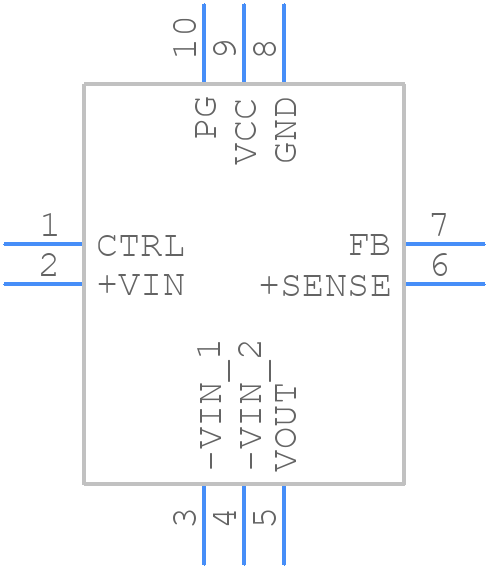

Symbol
RPL-3.0-R - RECOM Power - PCB symbol
click to zoom
PCB Footprints
RPL-3.0-R - RECOM Power PCB footprint - Other - Other - RPL-3.0-R-2
click to zoom
3D Models
RPL-3.0-R - RECOM Power - 3D model - Other - RPL-3.0-R-2
click to zoom

RPL-3.0-R Details

  • Manufacturer Part Number:

    RPL-3.0-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFLGA,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PBGA-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    5.2 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFLGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.55 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2530 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

RPL-3.0-R Frequently Asked Questions (FAQs)

  • RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended.
  • Yes, the RPL-3.0-R is designed to withstand high vibrations. However, it's recommended to follow the recommended mounting procedure and ensure the module is securely fastened to the PCB to prevent damage.
  • The maximum capacitance on the output depends on the specific application and the desired output voltage ripple. As a general rule, RECOM recommends limiting the output capacitance to 10uF or less to prevent oscillations.
  • Yes, the RPL-3.0-R can be used in a redundant configuration to achieve high reliability. However, it's essential to ensure that the modules are properly synchronized and that the system is designed to handle the increased power dissipation.
  • RECOM recommends using a fuse with a rating of 1.5-2 times the maximum input current to ensure safe operation and prevent damage to the module.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RPL-3.0-R Overview

Use the download button to access the RPL-3.0-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RPL-3, or try a keyword search, such as Switching Regulator or Controllers
