RPMA5.0-4.5/OF footprint, schematic symbol and 3D model by RECOM Power

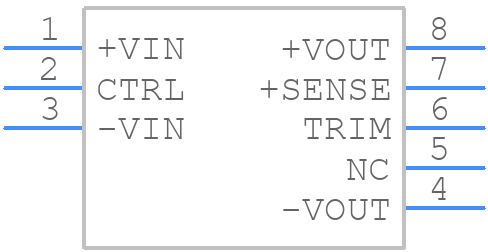

Symbol

click to zoom

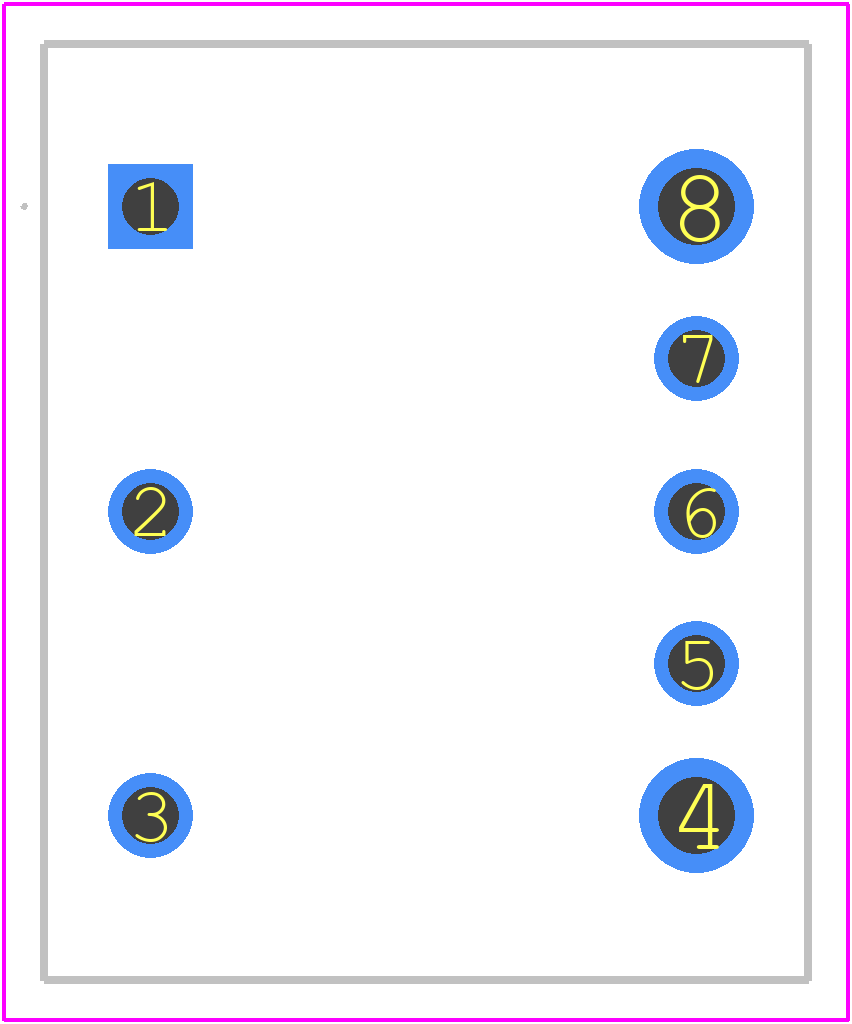

PCB Footprints

RPMA5.0-4.5/OF - RECOM Power PCB footprint - Other - Other - 19.1x23.4x9.6mm

click to zoom

3D Models

RPMA5.0-4.5/OF - RECOM Power - 3D model - Other - 19.1x23.4x9.6mm

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RPMA5.0-4.5/OF
Part Number RPMA5.0-4.5/OF
Manufacturer RECOM Power
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - 19.1x23.4x9.6mm
Released Date Nov 29, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RPMA5.0-4.5/OF Details

Manufacturer Part Number:
RPMA5.0-4.5/OF
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DMA,
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
RECOM Power GmbH
Analog IC - Other Type:
SWITCHING REGULATOR
Input Voltage-Max:
53 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
36 V
JESD-30 Code:
R-XDMA-P8
Length:
23.4 mm
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4.5 A
Output Voltage-Max:
30 V
Output Voltage-Min:
5 V
Output Voltage-Nom:
24 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
9.6 mm
Surface Mount:
NO
Switcher Configuration:
BUCK
Switching Frequency-Max:
300 kHz
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Width:
19.1 mm

RPMA5.0-4.5/OF Frequently Asked Questions (FAQs)

RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the RPMA5.0-4.5/OF is designed to withstand high-vibration environments. However, it's recommended to follow the recommended PCB layout and mounting guidelines to ensure the module is securely attached to the PCB and can withstand vibrations up to 10G.
The maximum capacitance load that can be connected to the output of the RPMA5.0-4.5/OF is 47uF. Exceeding this value may cause instability or oscillation in the output voltage.
Yes, the RPMA5.0-4.5/OF has built-in overvoltage protection (OVP) that will shut down the module if the input voltage exceeds 6.5V. The module will automatically recover once the input voltage returns to a safe level.
Yes, the RPMA5.0-4.5/OF can be used in a redundant power supply configuration. However, it's recommended to use a diode or an ORing FET to prevent back-feeding of power from one module to another in case of a failure.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RPMA5.0-4.5/OF Overview

Use the download button to access the RPMA5.0-4.5/OF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RPMA5, or try a keyword search, such as Switching Regulator or Controllers
