RPMA5.0-8.0/OF footprint, schematic symbol and 3D model by RECOM Power

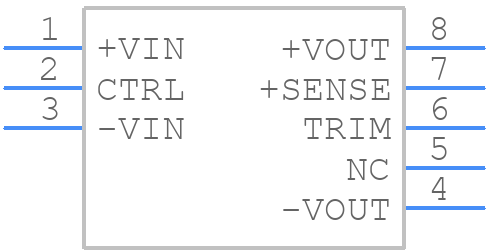

Symbol

click to zoom

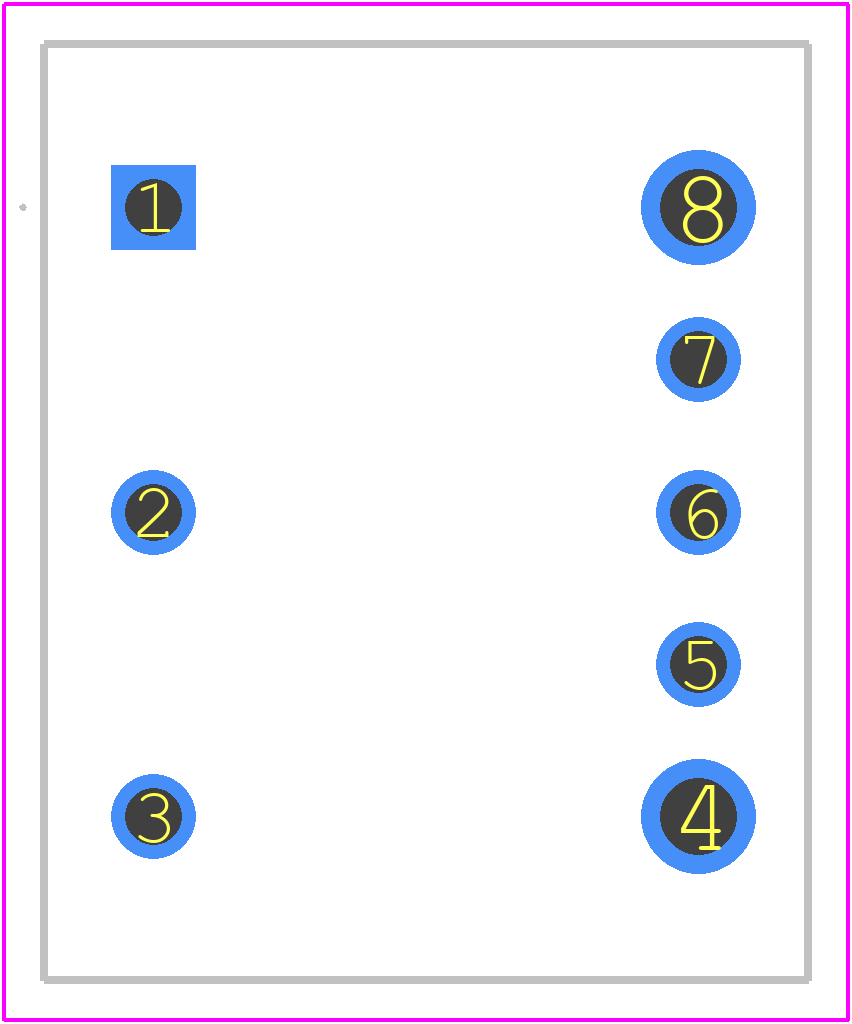

PCB Footprints

RPMA5.0-8.0/OF - RECOM Power PCB footprint - Other - Other - RPMA5.0-8.0/OF-2

click to zoom

3D Models

RPMA5.0-8.0/OF - RECOM Power - 3D model - Other - RPMA5.0-8.0/OF-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RPMA5.0-8.0/OF
Part Number RPMA5.0-8.0/OF
Manufacturer RECOM Power
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - RPMA5.0-8.0/OF-2
Released Date Nov 29, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RPMA5.0-8.0/OF Details

Manufacturer Part Number:
RPMA5.0-8.0/OF
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (Main Output):
96.5%
Input Voltage-Max:
53 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P8
Length:
23.4 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
8 A
Output Voltage-Max:
16.5 V
Output Voltage-Min:
3.3 V
Output Voltage-Nom:
24 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Equivalence Code:
MODULE,8LEAD,.54
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER CURRENT, OVER TEMPERATURE
Ripple Voltage (Main Out):
0.03535 Vrms
Seated Height-Max:
9.6 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
132 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.011 s
Width:
19.1 mm

RPMA5.0-8.0/OF Frequently Asked Questions (FAQs)

RECOM recommends a PCB layout with a large copper area connected to the GND pin to dissipate heat. A minimum of 1 square inch of copper is recommended. Additionally, the use of thermal vias and a thermal pad on the bottom side of the PCB can further improve thermal performance.
To ensure reliable operation in high-temperature environments, RECOM recommends derating the output power according to the temperature derating curve provided in the datasheet. Additionally, ensuring good airflow and using a heat sink can help to reduce the operating temperature of the module.
RECOM recommends using a low-ESR ceramic capacitor with a value of 10-22uF and a voltage rating of at least 2x the input voltage. The capacitor should be placed as close as possible to the input pins of the module.
Yes, the RPMA5.0-8.0/OF can be used in a redundant configuration. However, RECOM recommends using a diode orifice or a redundancy module to ensure that the outputs are properly isolated and to prevent back-feeding of power.
The maximum cable length for the output connections depends on the output current and the cable characteristics. As a general rule, RECOM recommends keeping the cable length as short as possible to minimize voltage drops and ensure reliable operation. A maximum cable length of 10-15cm is recommended.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RPMA5.0-8.0/OF Overview

Use the download button to access the RPMA5.0-8.0/OF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RPMA5, or try a keyword search, such as Power Supply Modules
