Technical Content
Part Image

RQ1E050RPFRATR - ROHM Semiconductor

Description: MOSFET, AEC-Q101, P-CH, -30V, TSMT; Transistor Polarity:P Channel; Continuous Drain Current Id:-5A; Drain Source Voltage Vds:-30V; On Resistance Rds(on):0.022ohm; Rds(on) Test Voltage Vgs:-10V; Threshold Voltage Vgs:-2.5V; Power RoHS Compliant: Yes

Download RQ1E050RPFRATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

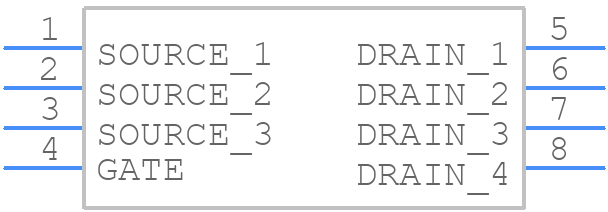

Symbol
RQ1E050RPFRATR - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
RQ1E050RPFRATR - ROHM Semiconductor PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - TSMT8_1
click to zoom
3D Models
RQ1E050RPFRATR - ROHM Semiconductor - 3D model - SO Transistor Flat Lead - TSMT8_1
click to zoom

RQ1E050RPFRATR Details

  • Manufacturer Part Number:

    RQ1E050RPFRATR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-06-23

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RQ1E050RPFRATR Overview

Use the download button to access the RQ1E050RPFRATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RQ1E0, or try a keyword search, such as Small Signal Field-Effect Transistors
