RQ3E075ATTB - ROHM Semiconductor

Description: Pch -30V -18A Middle Power MOSFET

Download RQ3E075ATTB Model

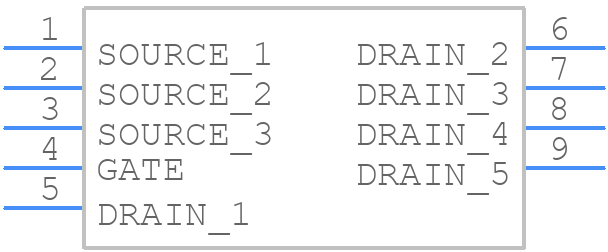

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RQ3E075ATTB - ROHM Semiconductor PCB footprint - Other - Other - HSMT8_ 2022-2
click to zoom
3D Models
RQ3E075ATTB - ROHM Semiconductor  - 3D model - Other - HSMT8_ 2022-2
click to zoom

RQ3E075ATTB Details

  • Manufacturer Part Number:

    RQ3E075ATTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.4

  • Avalanche Energy Rating (Eas):

    20 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    7.5 A

  • Drain-source On Resistance-Max:

    0.033 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    30 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RQ3E075ATTB Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the device, and to use thermal vias to dissipate heat to the other layers of the PCB.
  • To ensure proper soldering, use a soldering iron with a temperature of 350°C to 370°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the time the iron is in contact with the device.
  • The maximum allowed voltage transient is 40V, but it's recommended to keep transients below 30V to ensure reliable operation and minimize the risk of damage.
  • While the device is not hermetically sealed, it can still be used in high-humidity environments. However, it's recommended to take precautions such as conformal coating and sealing the device to prevent moisture ingress.
  • The recommended storage condition for this device is in a dry, dark place with a temperature range of 5°C to 30°C and humidity below 60%.
