ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure stability, a minimum output capacitance of 10uF is recommended, with a low ESR (Equivalent Series Resistance) of less than 1 ohm. Additionally, a 1uF ceramic capacitor can be added in parallel to improve transient response.
The maximum allowed input voltage ripple is 1Vp-p, with a frequency range of 10Hz to 100kHz. Exceeding this limit may affect the regulator's performance and stability.
While RQ3E100BNTB is rated for operation up to 125°C, it's essential to consider the derating curves in the datasheet to ensure reliable operation. Above 85°C, the output current capability decreases, and the device may enter thermal shutdown.
ROHM recommends adding an external current limiting resistor or a fuse in series with the input voltage to protect the device from overcurrent conditions. Additionally, a short-circuit protection circuit can be implemented using a current sense resistor and a comparator.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RQ3E100BNTB Overview

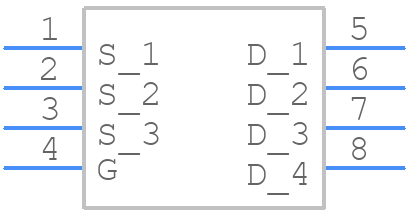

Use the download button to access the RQ3E100BNTB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RQ3E1,
or try a keyword search, such as Power Field-Effect Transistors
