Part Image

RQ3E150GNTB - ROHM Semiconductor

Description: MOSFET 4.5V Drive Nch MOSFET

Download RQ3E150GNTB Model

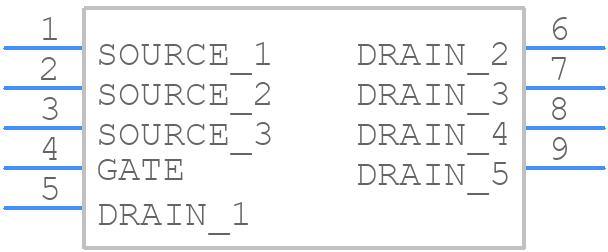

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RQ3E150GNTB - ROHM Semiconductor PCB footprint - Other - Other - HSMT8_1
click to zoom
3D Models
RQ3E150GNTB - ROHM Semiconductor  - 3D model - Other - HSMT8_1
click to zoom

RQ3E150GNTB Details

  • Manufacturer Part Number:

    RQ3E150GNTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HSMT8, 8 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.3

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    15 A

  • Drain-source On Resistance-Max:

    0.0081 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    60 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RQ3E150GNTB Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the thermal pad, and to use thermal vias to dissipate heat to the bottom layer. Additionally, keeping the thermal pad away from other components and ensuring good airflow around the device can also help.
  • To ensure the device is properly biased, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, ensure that the input and output capacitors are properly selected and placed close to the device to minimize parasitic inductance.
  • When handling the device, take precautions to prevent electrostatic discharge (ESD) damage by using an ESD wrist strap or mat, and avoid touching the device's pins or leads. Also, avoid bending or flexing the leads, and handle the device by the body or pins, not the leads.
  • To troubleshoot issues with the device, start by checking the input voltage and current, and ensure that the device is properly biased. Check for any signs of physical damage or overheating, and verify that the PCB layout and thermal design are correct. If the issue persists, consult the datasheet and application notes for guidance.
  • The RQ3E150GNTB has a typical lifespan of 10-15 years, depending on operating conditions and usage. The device is designed to meet the reliability standards of the automotive industry, with a failure rate of less than 10 FIT (failures per billion hours) at 125°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RQ3E150GNTB Overview

Use the download button to access the RQ3E150GNTB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RQ3E1, or try a keyword search, such as Power Field-Effect Transistors

Parts related to RQ3E150GNTB

Showing 0 results
