RR03J22RTB - TE Connectivity

Description: 22 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Metal Film

Download RR03J22RTB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RR03J22RTB - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

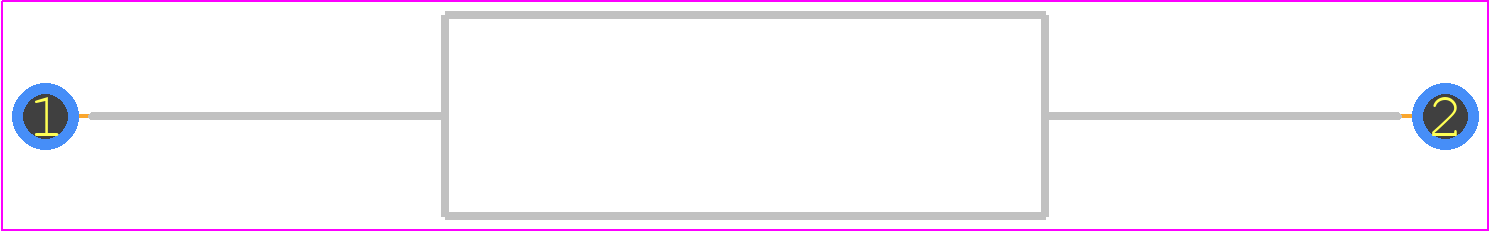

RR03J22RTB - TE Connectivity PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - RR03_2026
click to zoom
3D Models
RR03J22RTB - TE Connectivity - 3D model - Resistors, Axial Diameter Horizontal Mounting - RR03_2026
click to zoom

RR03J22RTB Details

  • Manufacturer Part Number:

    RR03J22RTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Factory Lead Time:

    10 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Construction:

    Tubular

  • Lead Diameter:

    0.8 mm

  • Lead Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    5 mm

  • Package Length:

    15 mm

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    AMMO PACK

  • Physical Dimension:

    15mm x 5mm

  • Rated Power Dissipation (P):

    3 W

  • Resistance:

    22 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    300 ppm/°C

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    750 V
