Coto Technology provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical stress.
To prevent damage to the relay, it's crucial to handle the device in a way that minimizes exposure to strong magnetic fields, such as those generated by magnets, motors, or transformers. Use anti-static wrist straps, mats, and tools to prevent electrostatic discharge (ESD) damage.
While the datasheet specifies the nominal coil voltage, it's essential to note that the relay can tolerate a certain amount of voltage overshoot during switching. Coto Technology recommends limiting the voltage across the coil to 1.5 times the nominal voltage to prevent damage or premature wear.
To ensure reliable operation in high-temperature environments, it's essential to consider the relay's thermal derating curve, which can be found in the datasheet. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the relay within its recommended operating temperature range.
Coto Technology recommends using a resistive-capacitive (RC) snubber circuit or a diode-transistor (DT) circuit to drive the relay coil. These configurations help to reduce electromagnetic interference (EMI), voltage spikes, and current surges, ensuring reliable relay operation and extending its lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RR132-1B12-551 Overview

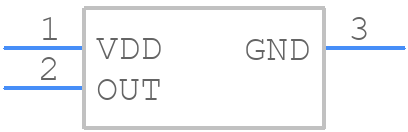

Use the download button to access the RR132-1B12-551 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RR132,
or try a keyword search, such as Magnetic Field Sensors
