Renesas provides a reference design and layout guidelines in the application note 'RRH46410-A3V Evaluation Board User's Manual' (document number: R01AN4533EU0100). Additionally, it's recommended to follow general high-power RF device layout and thermal management best practices, such as using a heat sink, thermal vias, and ensuring good airflow.
Renesas provides a set of recommended external component values and biasing conditions for different frequency bands and output power levels in the datasheet and application notes. Engineers can use these recommendations as a starting point and then perform iterative design and testing to optimize the device for their specific application.
The RRH46410-A3V has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging. Renesas recommends following the guidelines outlined in the 'Renesas Electronics ESD Protection and Handling Precautions' document (document number: R01DS0125EU0100).
Renesas provides a troubleshooting guide in the 'RRH46410-A3V Evaluation Board User's Manual' (document number: R01AN4533EU0100). Engineers can also use standard RF debugging techniques, such as using a spectrum analyzer, oscilloscope, and signal generator to identify and isolate issues. Additionally, Renesas offers technical support and resources through their website and local sales offices.
Renesas provides reliability data and MTBF estimates for the RRH46410-A3V in the datasheet and reliability reports. Engineers can also consult with Renesas technical support and local sales offices for more detailed information and guidance on how to ensure long-term reliability in their specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RRH46410-A3V Overview

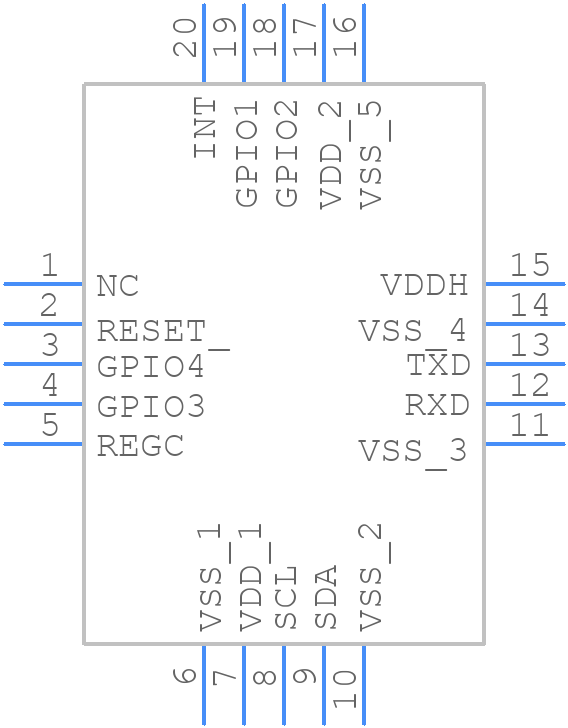

Use the download button to access the RRH46410-A3V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RRH46,
or try a keyword search, such as Other Sensors/Transducers
