RS1G120MNTB - ROHM Semiconductor

Description: N-Channel 40 V 12A (Ta) 3W (Ta), 25W (Tc) Surface Mount 8-HSOP

Download RS1G120MNTB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

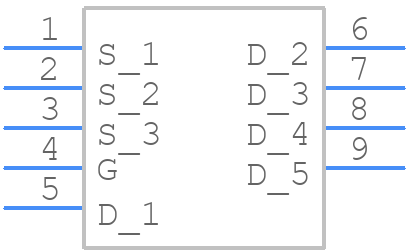

Symbol
RS1G120MNTB - ROHM Semiconductor - PCB symbol
click to zoom

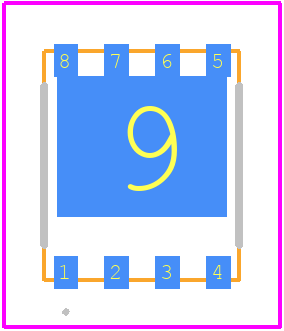

PCB Footprints
RS1G120MNTB - ROHM Semiconductor PCB footprint - Other - Other - RS1G120MNTB-2
click to zoom
3D Models
RS1G120MNTB - ROHM Semiconductor - 3D model - Other - RS1G120MNTB-2
click to zoom

RS1G120MNTB Details

  • Manufacturer Part Number:

    RS1G120MNTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HSOP-8

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    12 A

  • Drain-source On Resistance-Max:

    0.0207 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    3 W

  • Pulsed Drain Current-Max (IDM):

    48 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RS1G120MNTB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the RS1G120MNTB is -40°C to 125°C.
  • To ensure reliability, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal management system to keep the junction temperature below 125°C.
  • The maximum allowable power dissipation for the RS1G120MNTB is 1.2W, but this can be affected by the operating temperature and other factors, so be sure to check the datasheet for specific guidelines.
  • To handle the RS1G120MNTB's ESD sensitivity, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
  • The recommended storage temperature range for the RS1G120MNTB is -40°C to 125°C, and it is recommended to store the devices in a dry, cool place away from direct sunlight.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RS1G120MNTB Overview

Use the download button to access the RS1G120MNTB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RS1G1, or try a keyword search, such as Power Field-Effect Transistors
