The recommended PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a heat sink if necessary, and ensure good airflow around the device. Additionally, consider derating the device's power consumption and operating frequency according to the temperature derating curve provided in the datasheet.
The recommended soldering conditions for the RS2259BXTSS16 involve using a reflow soldering process with a peak temperature of 260°C (500°F) and a dwell time of 30-60 seconds. Hand soldering is not recommended due to the device's small size and high pin count.
To troubleshoot issues with the device's power-on reset (POR) circuitry, check the power supply voltage, ensure that the POR pin is properly connected, and verify that the reset signal is properly generated. Also, review the POR timing diagram in the datasheet to ensure that the reset signal meets the required specifications.
Operating the device beyond its specified frequency range can lead to reduced performance, increased power consumption, and potential device failure. It's essential to follow the recommended operating frequency range specified in the datasheet to ensure reliable operation and prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RS2259BXTSS16 Overview

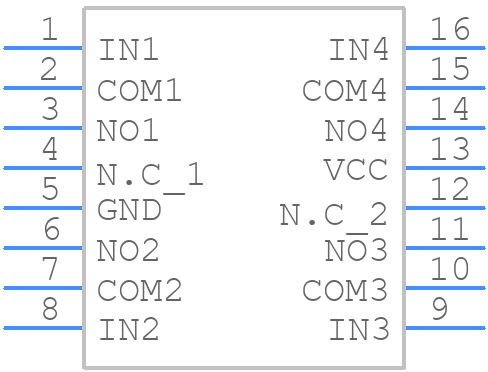

Use the download button to access the RS2259BXTSS16 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RS225,
or try a keyword search, such as Multiplexers or Switches
