RECOM recommends a PCB layout with a large copper area (at least 1 inch²) connected to the module's thermal pad, and multiple vias to dissipate heat to the bottom layer. A thermal interface material (TIM) can also be used to improve heat transfer.
To ensure reliability, RECOM recommends operating the module within the specified temperature range (-40°C to +85°C). Additionally, consider derating the output power and using a heat sink or forced air cooling to keep the module temperature below 80°C.
RECOM recommends using a low-ESR ceramic capacitor (X7R or X5R dielectric) with a value of 10-22 μF, placed as close as possible to the module's input pins. This helps to filter input noise and ensure stable operation.
Yes, the RS3-0505S/H2 can be used in redundant or parallel configurations, but RECOM recommends consulting their application notes and performing thorough testing to ensure reliable operation and avoid potential issues with synchronization or current sharing.
According to RECOM, the RS3-0505S/H2 has a calculated MTBF of >1.5 million hours, based on MIL-HDBK-217F calculations. However, actual MTBF may vary depending on the application, operating conditions, and other factors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RS3-0505S/H2 Overview

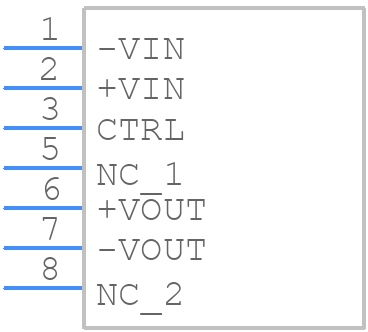

Use the download button to access the RS3-0505S/H2 schematic symbol, PCB footprint, and 3D model.
