RS3-1209D - RECOM Power

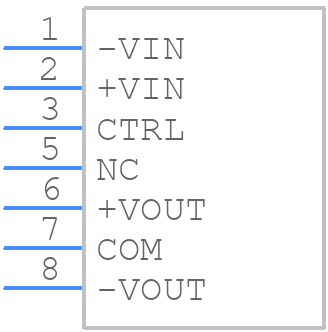

RS3-1209D Details

• Manufacturer Part Number:

  RS3-1209D

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SIP,

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• Manufacturer:

  RECOM Power GmbH

• YTEOL:

  5

• Additional Feature:

  ALSO -9V VOUT IS AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  IEC, EN, UL, CSA

• Efficiency (Main Output):

  81%

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PSIP-T7

• JESD-609 Code:

  e3

• Length:

  21.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  7

• Operating Temperature-Max:

  71 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.167 A

• Output Voltage-Max:

  9.18 V

• Output Voltage-Min:

  8.82 V

• Output Voltage-Nom:

  9 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Protections:

  SHORT CIRCUIT

• Qualification Status:

  Not Qualified

• Ripple Voltage (Main Out):

  0.017675 Vrms

• Screening Level:

  IEC/EN 60601-1

• Seated Height-Max:

  11.6 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  5

• Total Power Output-Max:

  3 W

• Trim/Adjustable Output:

  NO

• Width:

  9.2 mm
