ROHM recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
Ensure proper heat sinking, use a thermally conductive material for the PCB, and consider using a thermal interface material (TIM) between the device and heat sink. Also, follow the recommended operating temperature range and derate the device accordingly.
ROHM recommends a soldering profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a cooling rate of 3-5°C/s. Refer to the ROHM soldering guidelines for more details.
The RS3E075ATTB1 is not designed for high-humidity environments. If operation in high humidity is required, consider using a device with a moisture-sensing feature or applying conformal coating to protect the device.
Store the device in a dry, dark place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid storing the device in direct sunlight or near heat sources.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RS3E075ATTB1 Overview

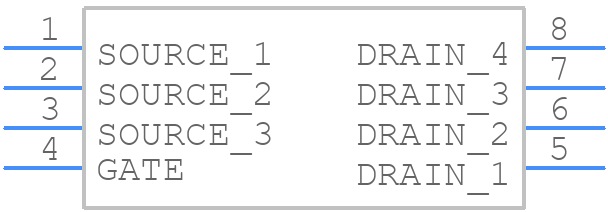

Use the download button to access the RS3E075ATTB1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RS3E0,
or try a keyword search, such as Power Field-Effect Transistors
