RS60112A600N - ALPS Electric

Description: Potentiometer: slide; 10kΩ; 100mW; THT; ±20%; logarithmic; metal

Download RS60112A600N Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this RS60112A600N model

Email notifications will be applied after download.

Send part feedback

Symbol

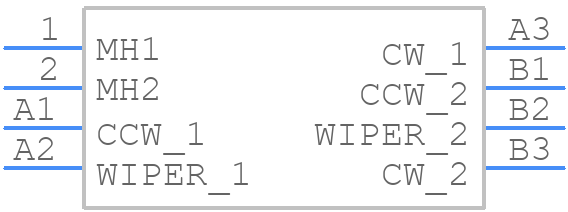

RS60112A600N - ALPS Electric - PCB symbol

PCB Footprints

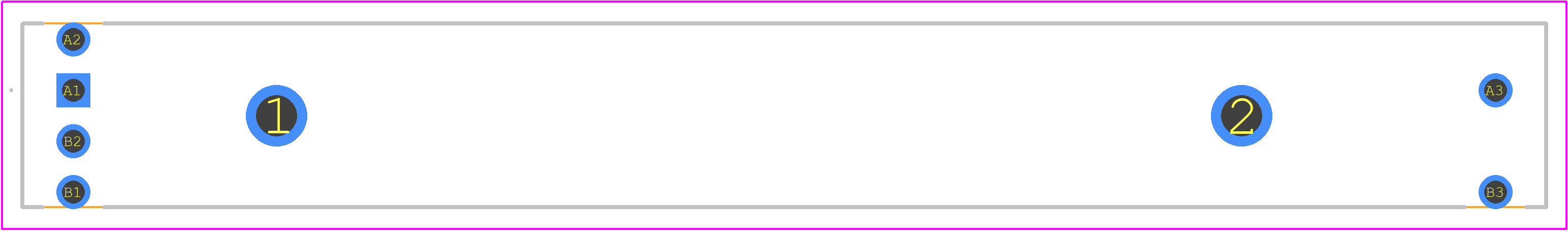

RS60112A600N - ALPS Electric PCB footprint - Other - Other - RS60112A600N-6

3D Models

RS60112A600N - ALPS Electric - 3D model - Other - RS60112A600N-6

Datasheet Download Datasheet
Stock & Prices Price & Stock for RS60112A600N
Part Number RS60112A600N
Manufacturer ALPS Electric
Pin Count 8
Part Category Variable Resistor
Package Category Other
Footprint Name Other - RS60112A600N-6
Released Date Dec 20, 2019
Last Modified Date Nov 2, 2024 8:07 AM UTC
Pinout / Pin List Click Here (Member Only)

RS60112A600N Details

Manufacturer Part Number:
RS60112A600N
Manufacturer:
Alps Electric Europe GmbH

Trust Checks

Community Provided

System Verified

Community Approved

RS60112A600N Overview

Use the download button to access the RS60112A600N schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RS601, or try a keyword search, such as Potentiometers
