- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RS9113-N00-S1C
- Part Number RS9113-N00-S1C
- Manufacturer Redpine Signals
- Pin Count 79
- Part Category Connector
- Package Category Other

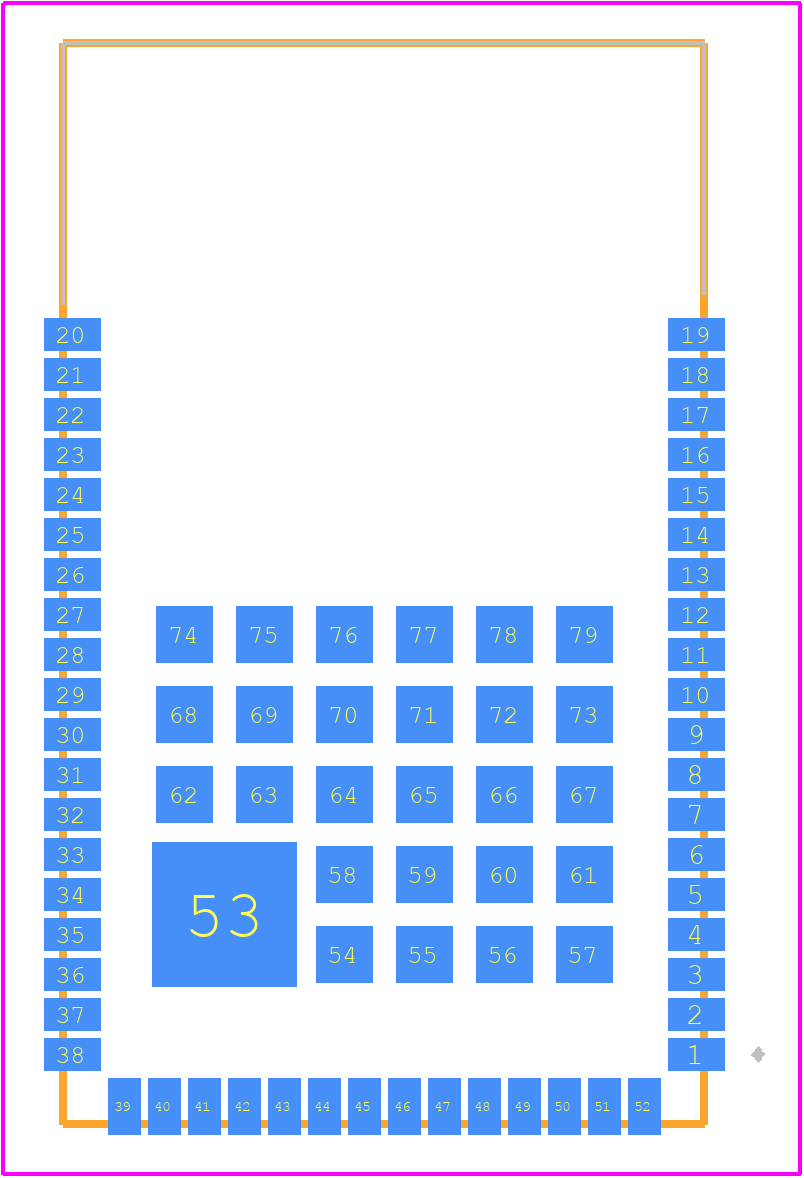

- Footprint Name Other - RS9113-N00-S1C-1
- Released Date Jan 28, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RS9113-N00-S1C Details
-
Manufacturer Part Number:
RS9113-N00-S1C
-
Part Life Cycle Code:
Transferred
-
Package Description:
PACKAGE-79
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Redpine Signals Inc
-
Additional Feature:
ALSO HAS BLUETOOTH DATA RATE= 1,2,3 Mbps and ZIGBEE DATA RATE= 250 kbps
-
Data Rate:
54000 Mbps
-
JESD-30 Code:
R-XXMA-N79
-
Length:
27 mm
-
Number of Functions:
1
-
Number of Terminals:
79
RS9113-N00-S1C Frequently Asked Questions (FAQs)
-
The recommended antenna design for optimal Wi-Fi performance is a dipole antenna with a length of 15mm to 20mm, and a width of 2mm to 3mm. The antenna should be placed at least 10mm away from any metal components.
-
To optimize power consumption, use the module's power save modes, such as the 'PSM' (Power Save Mode) and 'DTIM' (Delivery Traffic Indication Message) features. Additionally, consider using a low-power Wi-Fi mode, such as 'Wi-Fi Direct' or 'Wi-Fi Low Power' mode.
-
The maximum operating temperature range for the RS9113-N00-S1C module is -40°C to +85°C. However, it's recommended to operate the module within a temperature range of 0°C to 70°C for optimal performance and reliability.
-
To ensure reliable Wi-Fi connectivity in noisy environments, use the module's built-in features such as 'Dynamic Frequency Selection' (DFS) and 'Transmit Power Control' (TPC). Additionally, consider using external components such as a Wi-Fi antenna with a high gain and a narrow beamwidth.
-
The recommended PCB layout and design guidelines for the RS9113-N00-S1C module include using a 4-layer PCB with a solid ground plane, keeping the module away from high-frequency components, and using a decoupling capacitor of at least 10uF between the module's power pins.
Trust Checks
Expert Contribution
System Verified
Community Approved
RS9113-N00-S1C Overview
Use the download button to access the RS9113-N00-S1C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RS911,
or try a keyword search, such as Other Telecom ICs
