RS9113-NB0-D1W - Redpine Signals

Description: WiFi Modules (802.11) 2band WiSeConnect w/ Ant, Wi-Fi and BT

Download RS9113-NB0-D1W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RS9113-NB0-D1W - Redpine Signals - PCB symbol
click to zoom
PCB Footprints

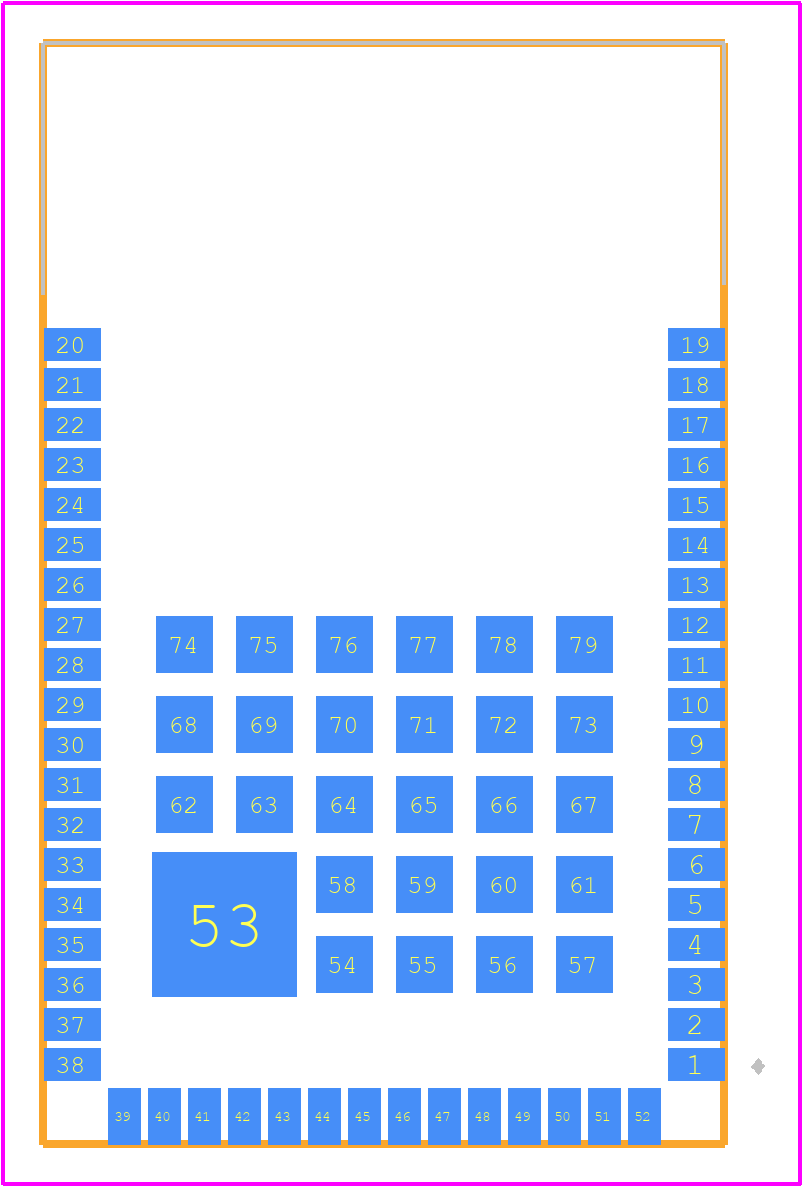

RS9113-NB0-D1W - Redpine Signals PCB footprint - Other - Other - RS9113-NB0-D1W-3
click to zoom
3D Models
RS9113-NB0-D1W - Redpine Signals - 3D model - Other - RS9113-NB0-D1W-3
click to zoom

RS9113-NB0-D1W Details

  • Manufacturer Part Number:

    RS9113-NB0-D1W

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PACKAGE-79

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Redpine Signals Inc

  • Additional Feature:

    ALSO HAS BLUETOOTH DATA RATE= 1,2,3 Mbps and ZIGBEE DATA RATE= 250 kbps

  • Data Rate:

    54000 Mbps

  • JESD-30 Code:

    R-XXMA-N79

  • Length:

    27 mm

  • Number of Functions:

    1

  • Number of Terminals:

    79

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    3.3 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    16 mm

RS9113-NB0-D1W Frequently Asked Questions (FAQs)

  • The maximum transmit power of the RS9113-NB0-D1W module is +23 dBm.
  • Yes, the RS9113-NB0-D1W module supports Wi-Fi Direct, which allows for device-to-device connections without the need for a wireless access point.
  • Yes, the RS9113-NB0-D1W module can operate in both Wi-Fi and Bluetooth modes simultaneously, allowing for concurrent connections to Wi-Fi and Bluetooth devices.
  • The operating temperature range of the RS9113-NB0-D1W module is -40°C to +85°C.
  • Yes, the RS9113-NB0-D1W module supports secure boot and secure firmware updates, ensuring that the module boots securely and firmware updates are authenticated and encrypted.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RS9113-NB0-D1W Overview

Use the download button to access the RS9113-NB0-D1W schematic symbol, PCB footprint, and 3D model.
