RSH3-1224S/H2-R footprint, schematic symbol and 3D model by RECOM Power

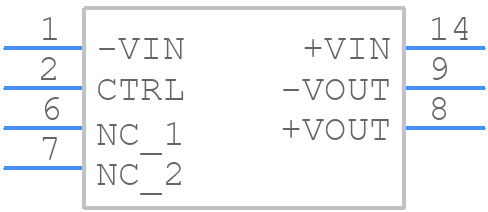

Symbol

click to zoom

PCB Footprints

RSH3-1224S/H2-R - RECOM Power PCB footprint - Other - Other - RSH3-1224S/H2-R-1

click to zoom

3D Models

RSH3-1224S/H2-R - RECOM Power - 3D model - Other - RSH3-1224S/H2-R-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RSH3-1224S/H2-R
Part Number RSH3-1224S/H2-R
Manufacturer RECOM Power
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - RSH3-1224S/H2-R-1
Released Date Sep 8, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

RSH3-1224S/H2-R Details

Manufacturer Part Number:
RSH3-1224S/H2-R
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RSH3-1224S/H2-R Overview

Use the download button to access the RSH3-1224S/H2-R schematic symbol, PCB footprint, and 3D model.
