The thermal resistance of the RSJ301N10FRATL is typically around 2.5°C/W (junction-to-ambient) and 1.25°C/W (junction-to-case). However, this value can vary depending on the specific application and cooling conditions.
Yes, the RSJ301N10FRATL is suitable for high-frequency switching applications due to its low gate charge (Qg) and low output capacitance (Coss). However, it's essential to ensure that the device is properly driven and that the PCB layout is optimized for high-frequency operation.
To ensure the reliability of the RSJ301N10FRATL in a high-temperature environment, it's essential to follow proper derating guidelines, ensure good thermal management, and avoid exceeding the maximum junction temperature (Tj) of 150°C. Additionally, consider using a thermally conductive material for the PCB and ensuring good airflow around the device.
Yes, it is possible to parallel multiple RSJ301N10FRATL devices to increase current handling. However, it's essential to ensure that the devices are properly matched, and the PCB layout is optimized to minimize current imbalance and thermal mismatch between devices.
The recommended gate drive voltage for the RSJ301N10FRATL is typically between 10V and 15V. However, the optimal gate drive voltage may vary depending on the specific application and switching frequency. It's essential to consult the datasheet and application notes for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RSJ301N10FRATL Overview

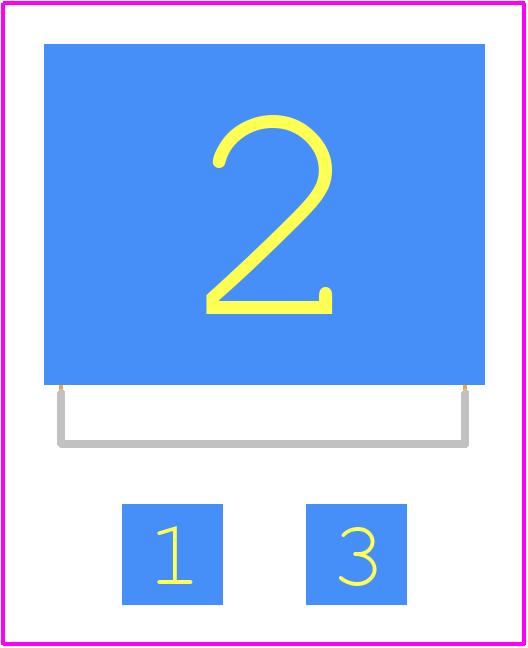

Use the download button to access the RSJ301N10FRATL schematic symbol, PCB footprint, and 3D model.
