RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the RSO-2405DZ/H3 is designed to withstand high vibrations. It has been tested to meet the IEC 60068-2-6 standard for vibration, which includes sinusoidal vibration at 10-2000 Hz, 2 mm amplitude, and 10 G acceleration.
To ensure reliability in high-temperature environments, RECOM recommends derating the module's output power according to the temperature derating curve provided in the datasheet. Additionally, ensuring good airflow and heat dissipation around the module is crucial.
RECOM recommends using a fuse with a rating of 2-3 times the maximum input current of the module, which is 4.5 A for the RSO-2405DZ/H3. This ensures that the fuse can handle inrush currents and provides protection against overcurrent faults.
Yes, the RSO-2405DZ/H3 can be used in a redundant configuration to achieve high availability and reliability. However, it is essential to ensure that the modules are properly synchronized and that the system is designed to handle the increased power consumption and heat generation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RSO-2405DZ/H3 Overview

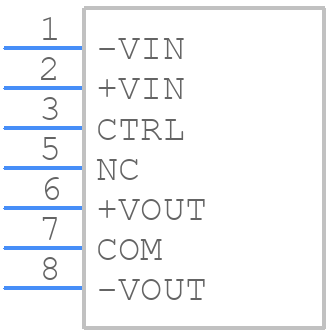

Use the download button to access the RSO-2405DZ/H3 schematic symbol, PCB footprint, and 3D model.
