RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
To ensure reliability in high-temperature environments, RECOM recommends following the derating curves provided in the datasheet, using a suitable heat sink, and ensuring good airflow around the module. Additionally, the module should be operated within the specified temperature range and not be subjected to thermal shocks.
RECOM recommends using a low-ESR ceramic capacitor with a value of 10-22uF, X7R or X5R dielectric, and a voltage rating of 50V or higher. The capacitor should be placed as close as possible to the module's input pins to minimize noise and ripple.
Yes, the RSO-2415DZ can be used in a redundant or parallel configuration, but RECOM recommends consulting with their application engineers to ensure proper design and implementation. Additionally, the modules should be synchronized to prevent oscillations and ensure stable operation.
The RSO-2415DZ has a built-in undervoltage lockout (UVLO) circuit that shuts down the module when the input voltage falls below 10.5V. The module will automatically restart when the input voltage recovers to 11.5V or higher.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RSO-2415DZ Overview

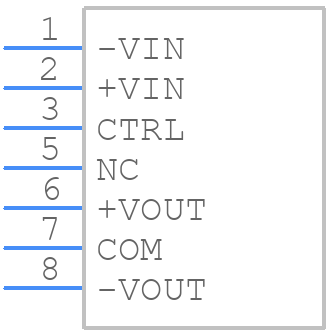

Use the download button to access the RSO-2415DZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RSO-2,
or try a keyword search, such as Power Supply Modules
