Part Image

RSP150-40M - RECOM Power

Description: Board Mount Surge Protectors 150W 9-36Vin 40Vout 10A , -40C +105C , 9 VDC to 36 VDC

Download RSP150-40M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

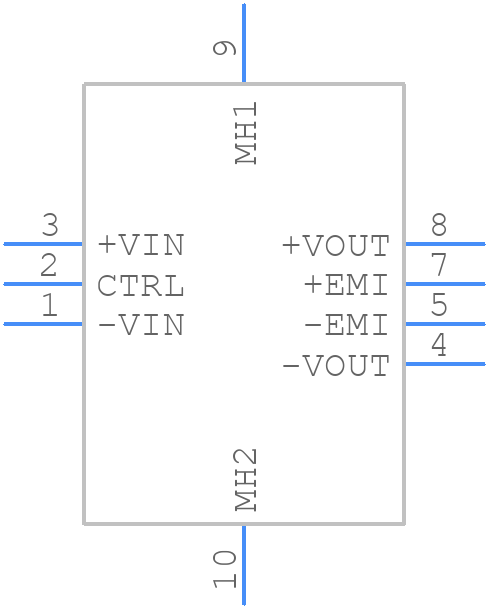

RSP150-40M - RECOM Power - PCB symbol
click to zoom
PCB Footprints

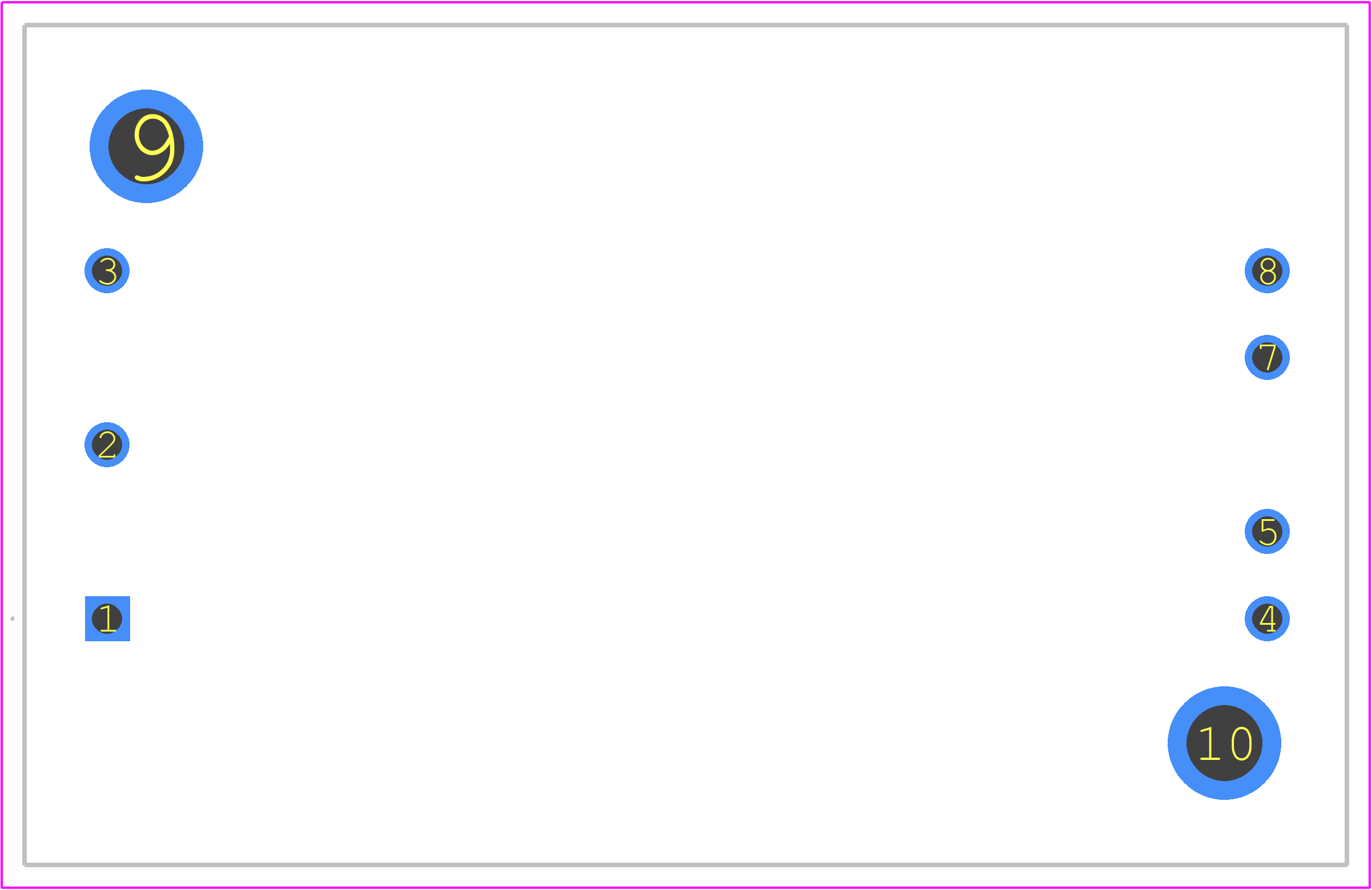

RSP150-40M - RECOM Power PCB footprint - Other - Other - 57.9mm x 36.8mm x 12.7mm_2024-1
click to zoom
3D Models
RSP150-40M - RECOM Power - 3D model - Other - 57.9mm x 36.8mm x 12.7mm_2024-1
click to zoom

RSP150-40M Details

  • Manufacturer Part Number:

    RSP150-40M

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    7

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RSP150-40M Overview

Use the download button to access the RSP150-40M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RSP15, or try a keyword search, such as Power Management Circuits
